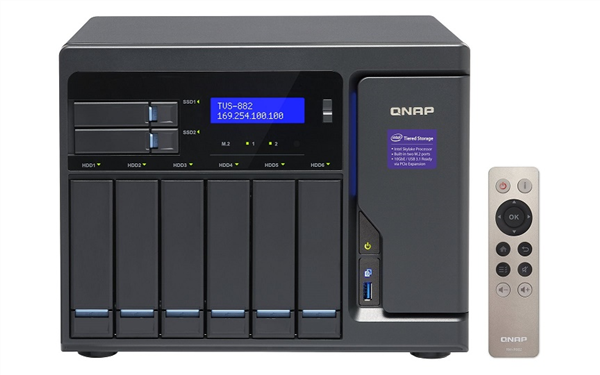

The TVS-882 features advanced hardware by adopting 6th Generation Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-882 also supports smooth 4K 60 fps video transfer and display, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-882 presents an ideal choice for a complete business-ready storage solution.
• Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
• Qtier technology and SSD cache enable 24/7 optimized storage efficiency
• The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
• Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
• Scalable design with economical QNAP storage expansion enclosures
• Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-882’s storage capacity
• Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
6th Generation Intel processors, extraordinary performance
The TVS-882 is powered by high-performance 6th Generation Intel multi-core processors with options including Core i3 and Core i5, increasing system performance by 20% - 30% compared with previous generations. It greatly enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K video playback, and serving large numbers of simultaneous connections.
Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.
- 2 x 2.5” SSD slots: Offers flexible configuration in tiered storage and enables cache acceleration.
- Tool-less HDD tray and installation: 2.5” SSD trays and 3.5” hard drive trays feature tool-less design for easy installation and replacement.
- 2 x built-in M.2 SSD slots: Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors; allows the greatest flexibility in tiered storage configuration and enables cache acceleration.
- DDR4 2133 MHz memory: Supports four DDR4 memory modules for a maximum of 32GB RAM.
- 6th Generation Intel Core Processor: Features the latest 14nm manufacturing technology with faster buses to support DDR4, PCIe Gen.3, and DMI 3.0 for incredible performance and extremely efficient data transmission.
- 2 x PCIe Gen.3 expansion slots: PCIe Gen.3 provides 1GB/s bandwidth per lane; support for 10GbE/ 40GbE adapters, PCIe NVMe SSD, external graphics cards (AMD Radeon R7/ R9), and USB 3.1 expansion cards.
- Compartmentalized smart cooling: Separately detects the CPU and hard drive temperatures to dynamically control fan speed and performs quieter fan operations.
- 4 x Gigabit Ethernet ports: Allows optimized network traffic distribution for diverse applications. The Network & Virtual Switch app makes network management much easier.
- 3 x HDMI outputs: One HDMI 2.0 port and two HDMI 1.4b ports; supports duplicated and extended desktop options. HDMI 2.0 increases bandwidth up to 18Gbps, and supports 4K 60 fps videos.
- 3.5mm audio jack: Connect speakers or headphones for direct audio output from the NAS.
- 2 x built-in speakers: Supports direct audio output and provides verbal system warnings.
• CPU: Intel Core i3-6100 3.7 GHz dual-core processor
• System memory: Total DIMM slots: 4
• Maximum memory: 32 GB (8 GB x4)
• Memory modules pre-installed: 8 GB DDR4 RAM (4 GB x 2)
• Flash Memory: 512MB DOM
• M.2 Slot: 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD(*1)
• Hard Drive Tray: 2 x 2.5” SSD, 6 x 2.5”/3.5” hard drive or SSD
• Drive Interface: SATA 6Gbps/3Gbps; Hot-swappable
• USB: 1 x USB 3.0 port (Front), 4 x USB 3.0 port (Rear)
• LAN Port: 4 x GbE port
• HDMI Output: 3 (HDMI 1.4b x2, HDMI 2.0 x1)
• Audio Input: Audio In: 2 x 6.3mm MIC In
• Audio Output: 2 x built-in speaker, 1 x 3.5mm Line-out jack(*2)
• LED Indicators: System status, 2.5” SSD, M.2 SSD, 3.5” HDD
• Buttons: System: Power button, Reset button, USB one-touch-backup button
• System Warning: Buzzer
• Form Factor: Tower
• Dimensions: 231.9 (H) x 292.8 (W) x 319.8(D) mm/9.13 (H) x 11.53 (W) x 12.59 (D) inch
• Net Weight: (NAS only): 9.05 kg/ 19.95 lb
• Gross Weight: (with packing and accessories): 10.85 kg/ 23.92 lb
• Sound Level (dB)*: Sound pressure (LpAm) (bystander position): 21.8 dB (with 6 x Seagate ST2000VN000-1HJ164 hard drive installed)
• Temperature: 0-40˚C
• Relative Humidity: 5~95% non-condensing, wet bulb: 27˚C
• Power Supply: Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
• PCIe Slot: 2 (1* PCIe Gen3 x16; 1* PCIe Gen3 x4)
• System Fan: 2 x 8 cm cooling fan
• CPU Fan: 1 x 9 cm fan
(*1) The M.2 SSD is not included as standard.
(*2) Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.
(*3) For using AMD R9 Graphics Card, please choose TVS-882-i5-16G-450W for providing sufficient power to the graphic card.
