Ubiquiti UA-G3-FLEX-W UniFi Access Reader Flex

UniFi Access Reader Flex

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
Third-generation NFC card reader with a keypad and Apple Touch Pass support.

  • Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass.
  • Provides entry and exit greeting messages.
  • Push button performance (Usable with moisture or most gloves).
  • IP55-rated weather resistance (-30 to 60°C).
  • Connects to UniFi Access Hub via PoE.

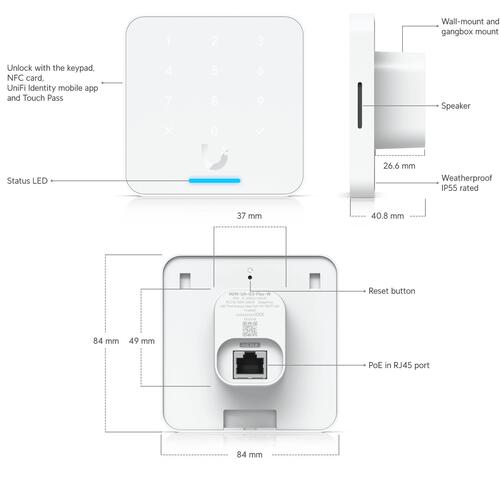

Mechanical
Dimensions 84 x 84 x 40.8 mm
Weight 165 g
Enclosure material Polycarbonate, glass, aluminium alloy
Mounting material Polycarbonate, aluminum alloy
Mounting Wall, gang box, junction box
Weatherproofing IP55

Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power method PoE
Supported voltage range 44-57V DC
Max. power consumption 5W
Sensor (12) Capacitive buttons
Speaker (1) 8 ohm, 1W
LEDs (1) Status light
(12) Keys backlight
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Operating environment Outdoor use
Ambient operating temperature -30 to 60° C
Ambient operating humidity 5 to 90% noncondensing
