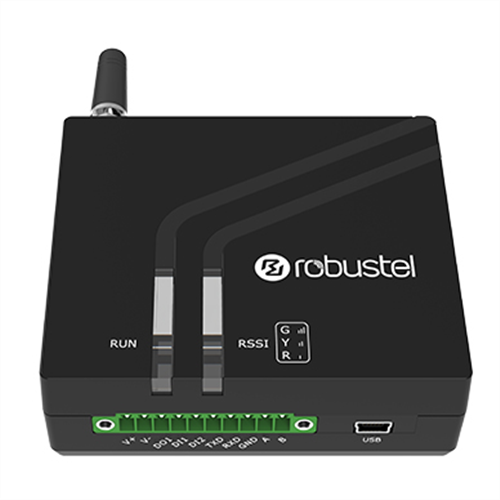

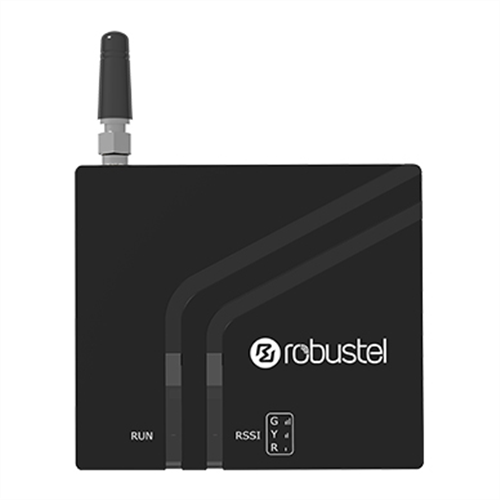

Robustel B033701 Smart Industrial IoT Gateway, Dual SIM, RS232, RS485, DI/DO (M1200-4L)

Smart Industrial IoT Gateway (Model M1200)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The M1200 enables remote data transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB. This dual-SIM gateway provides users with stable network connectivity and data transmission.

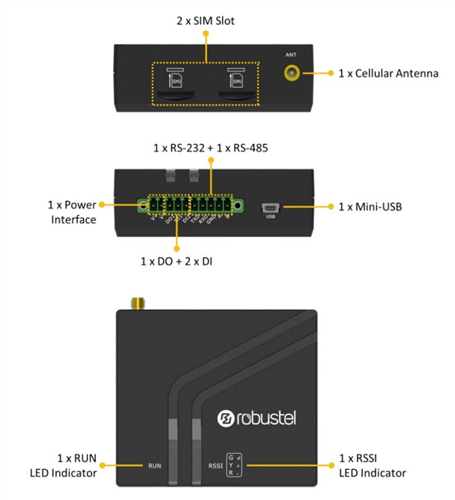

  • 2G/3G/4G Cellular

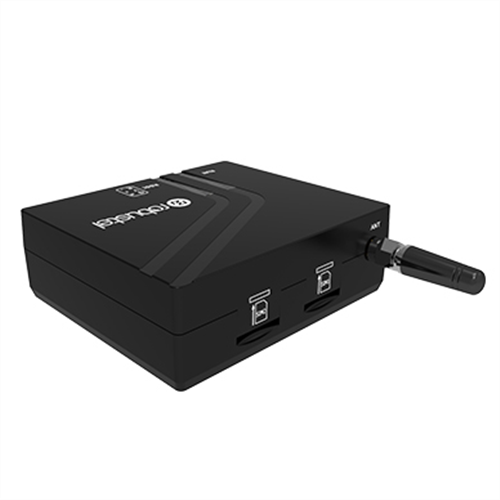

  • 2 SIM Slots
  • 1 x RS232 and 1 x RS485 Serial
  • 1 x mini USB, for configuration and power supply
  • 2 LED indicators for RSSI
  • 9 to 36 VDC Power Supply Input Range
  • Dimensions : 85 x 75 x 28.5 mm

The Robustel Smart Industrial IoT Gateway M1200 is a compact cellular gateway based on GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE TDD LTE networks. This dual-SIM gateway enables remote data transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB. M1200 provides users with stable network connectivity and data transmission. It is available to meet industrial application demands for its standards-compliant industrial designs. As a universal gateway, it can be applied in many scenarios such as Energy, Transportation and Agriculture, etc

  • Auto GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE connections (No AT command required)
  • Supporting two dial-up policies, Always Online and Connect on Demand
  • Dual-SIM backup (push-push or MFF type optional)
  • Supporting SMS Direct mode which can transparently convert serial data to SMS or vice versa
  • IPsec/OpenVPN/GRE/L2TP/PPTP
  • Transparent TCP and UDP protocol connections
  • ICMP, DDNS, SNTP and Telnet
  • Modbus RTU to TCP
  • Auto rebooting via SMS and Timer
  • Configuration and firmware upgrading via USB and RobustLink
  • Sending SMS if DI is triggered (optional)
  • Robust industrial design (9 to 36V DC, -40 to +75 °C extended operating temperature, desktop or wall mounting or DIN rail mounting)

Package Contents
Robustel Smart Industrial IoT Gateway M1200
10-pin 3.5 mm RP male terminal block with lock for DI/DO connections
Quick Start Guide with download link of other documents or tools

Optional Accessories
3G/4G SMA cellular antenna
Wall mounting kit
35 mm DIN rail mounting kit
AC/DC power adapter (12V DC, 1.5 A) bare wire
