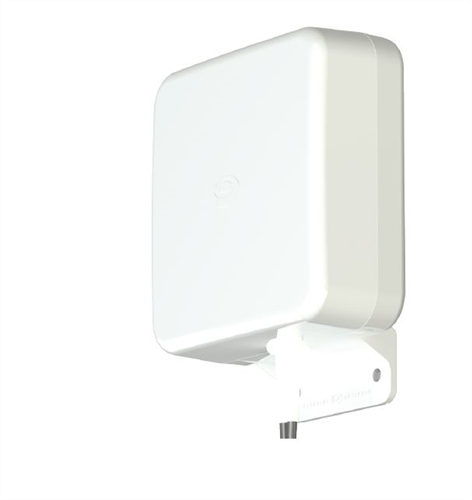

Panorama WMM8G-7-27-5SP Wall/Mast Mount Directional Antenna, 2G/3G/4G, 698-960 & 1710-2700 MHz

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

This antenna from Panorama Antennas provides an innovative and future proof solution for 2G / 3G and 4G networks. Incorporating two separately fed ultra wideband elements in a single housing the WMM8G-7-27-5SP is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow. With 2dBi gain at 698-960MHz, 5dBi gain at 1710-2170MHz and 4dBi gain at 2.2-2.7GHz this antenna provides extra gain performance where it is needed most.

The rugged, weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided. 4.8m of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation. This is a cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention.

  • Supports MiMo & diversity across 2G, 3G and 4G
  • Two ultra wideband elements
  • Durable wall mount housing
  • Suitable for mast and wall bracket mounting

Frequency Range : 698-960MHz, 1710-2700MHz
Operational Bands : 2G / 3G / 4G
VSWR : <2.5:1
Peak Gain : 698-800MHZ (2dBi), 800-960MHz (6dBi), 1710-2170MHz (9dBi), 2396-2700 (6dBi)
Total Efficiency : (all bands) > 65%
Correlation Co-efficient : <0.05
Element Isolation : >20dB
Max Input Power : 20 Watts
Impedance : 50 ohms

Dimensions : 186 X 155 mm
Operating Temp : -30° / +70°C
Material : Flame Retardent U.V., Stabilized ABS
Color : White

Fixing Wall mount / mast mount / desk mount
Mounting Bracket Material Stainless Steel / Aluminium
Pole Diameter 20-50 / (0.78 - 1.96”)

Type 2 x CS29 Coax Cable
Thickness : 5cm
Length : 4.8m
Termination : 2 x SMA Male
