LevelOne FEP-0812-V4 8-Port 10/100Mbps PoE Switch, 4 802.3at/af PoE Ports, 61.6W total PoE

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

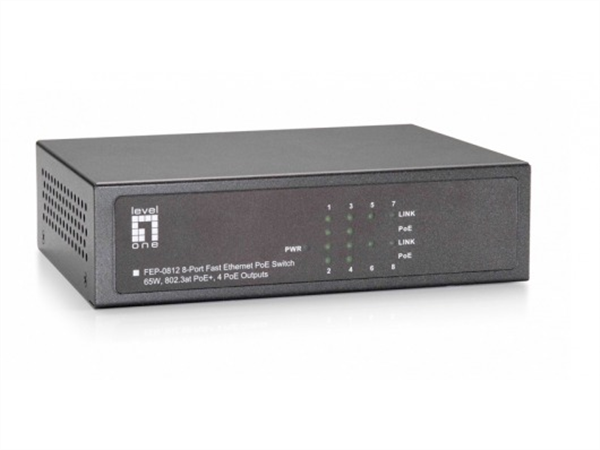

The FEP-0812 is an 8-port 10M/100M Fast Ethernet Switch with 4 ports of Power over Ethernet capability. The total PoE power budget for this switch is 61.6W. It is an ideal solution where office users utilize a combination of PoE and non-PoE enabled devices.

- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Total PoE power budget: 65W, up to 30W per port
- Internal power supply

PoE:
Power Budget: Max. 61.6W
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 56V DC, Max. 15.4 watts (IEEE 802.3af) or 30 watts (IEEE 802.3at)
Power Pin Assignment: 1/2(+), 3/6(-)
