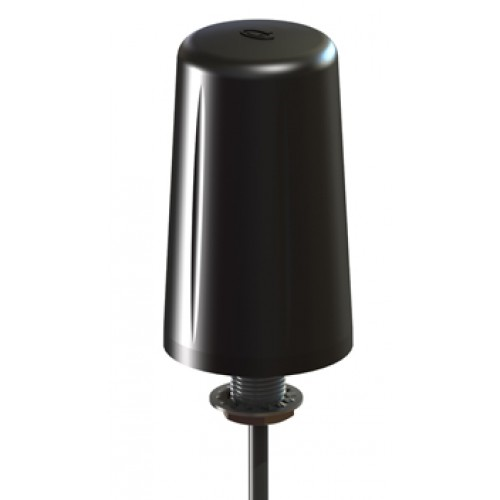

Panorama LPB-7-27-2SP Low Profile Outdoor Antenna, Omni Directional, 700-2700 MHz

This is an extremely robust low profile antenna for LTE, M2M and IOT applications.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

This model comes with 2M of cable and an SMA plug. (Also available with Optional Mounting Bracket and with other cable lengths).

  • Robust low profile design
  • Excellent Bandwidth
  • Global cellular frequencies from 698-960 MHz and 1710-2700MHz
  • 1 x SMA Connector
  • 2m Cable length


At only 82mm high and protected by a robust high impact radome the antenna is almost impervious to daily wear, tear and impact. The LPB antenna offers excellent performance across a wide bandwith.

Mounted on a 400 x 400mm groundplane it covers public safety / LTE frequencies across 700 and 800MHz as well as all global cellular frequencies from 698-960 MHz and 1710-2700MHz making it an extremely versatile product.

Supplied with a convenient adhesive pad and a cable/connector to suit, the LPB range is cost effective to install and adaptable to any install environment.

Weight : 0.175 kg
Dimensions : 45 x 12 x 3 cm
