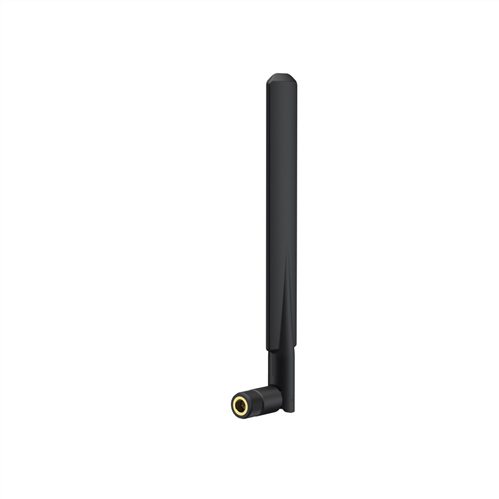

Panorama PWB-BC3G-26-RSMAP 2G/3G/4G Antenna

7 bands - 700MHz LTE,Quadband cellular, 3G UMTS / AWS, LTE / WIMAX 2.6GHz

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Suitable routers and terminals
  •  Works with 2G, 3G, and 4G
  • 698-960, 1710- 2170 and 2396-2700 MHz
  • Articulated SMA connector

The PWB-BC3G-26-RSMAP antenna is a ground plane independent antenna covering global 2G/3G and 4G frequecies from 698-960/1710-2170 and 2396-2700MHz.

Designed for terminals and routers the PWB-BC3G-26-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.

2G/3G/4G Frequencies : 698-960/1710-2700MHz
Typical VSWR : <2.5:1
Peak Gain (dBi) : 2
Max Input Power (W) : 25
Pattern : Omni-directional

Length (mm) : 41
Width (mm) : 7
Height (mm) : 163
Operating Temperature : -30 / + 70°C

Mounting Type : Articluated Hinge
Mounting Method : SMA Plug
