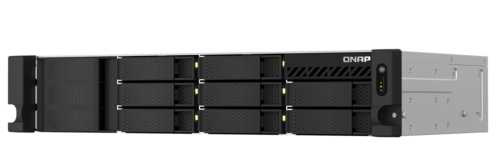

QNAP TS-864EU-8G 8-bay short-depth rackmount NAS, 4-core CPU, 8G RAM

8-bay short-depth rackmount NAS, 4-core CPU, 8G RAM

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Compact, powerful, and built for growing businesses, the QNAP TS-864EU-8G delivers enterprise-class storage in a space-saving short-depth 2U rackmount design.

Designed for organisations that need reliable centralised storage, backup, file sharing, and virtualisation support, the TS-864EU-8G combines eight drive bays, dual 2.5GbE networking, and flexible expansion options to provide a scalable storage platform for modern IT environments.

Powered by an Intel® Celeron® quad-core processor and equipped with 8GB DDR4 memory, the TS-864EU-8G delivers responsive performance for business-critical workloads. Its short-depth chassis makes it ideal for installation in shallow network cabinets, edge deployments, branch offices, and space-constrained server rooms.

Key Features

  • 8 x SATA drive bays supporting 3.5" HDDs and 2.5" SSDs
  • Intel® Celeron® N5095/N5105 quad-core processor
  • 8GB DDR4 RAM (expandable)
  • Dual 2.5GbE network ports
  • 2 x M.2 2280 NVMe SSD slots for SSD caching
  • PCIe Gen3 x2 expansion slot
  • USB 3.2 Gen 2 connectivity
  • HDMI 1.4b output with up to 4K support
  • Snapshot protection and comprehensive backup solutions
  • Supports QTS and QuTS hero operating systems
  • Short-depth rackmount design for compact installations

Technical Specifications

Specification

Details

Form Factor

2U Short-Depth Rackmount

Drive Bays

8 x 3.5"/2.5" SATA 6Gb/s

Processor

Intel® Celeron® N5095/N5105 Quad-Core, up to 2.9GHz

Memory

8GB DDR4 SODIMM (1 x 8GB)

Maximum Memory

16GB DDR4 (2 x 8GB)

M.2 Slots

2 x M.2 2280 PCIe Gen3 x1 NVMe SSD

Network Ports

2 x 2.5GbE RJ45

PCIe Expansion

1 x PCIe Gen3 x2

USB Ports

2 x USB 3.2 Gen 2 Type-A

HDMI

1 x HDMI 1.4b

RAID Support

RAID 0, 1, 5, 6, 10, 50, 60, JBOD

Hardware Encryption

AES-NI 256-bit Encryption Engine

Operating System

QTS 5.x / QuTS hero

Power Supply

250W Internal PSU

Cooling

2 x 80mm System Fans

Dimensions (H x W x D)

88.6 x 482 x 297.4 mm

Weight (Net)

Approximately 6.5 kg

Warranty

3-Year Manufacturer Warranty

Built for Business

The TS-864EU-8G is engineered to support file sharing, virtual machines, surveillance storage, hybrid cloud deployments, and centralised backup. Advanced RAID protection, snapshot technology, and flexible expansion options help safeguard business data while providing room for future growth.

Ideal For

  • Small and medium businesses
  • Branch office storage
  • Virtualisation environments
  • Backup and disaster recovery
  • Video surveillance deployments
  • Hybrid cloud infrastructure
  • File sharing and collaboration

With its compact footprint, high-speed networking, and enterprise-grade features, the QNAP TS-864EU-8G provides a powerful and scalable storage solution for organisations seeking reliable, high-performance data management.
