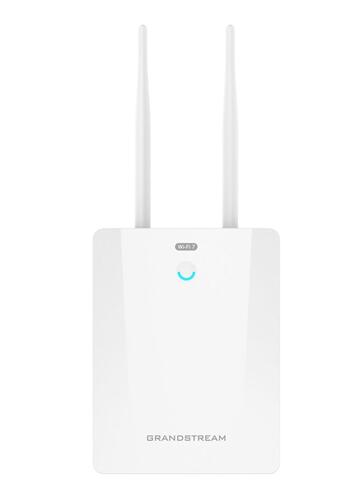

Grandstream GWN7670LR WiFi 7 Long Range Outdoor Access Point, 2x2 Dual Band BE3600
Grandstream GWN7670LR 2x2 Dual Band BE3600 WiFi7 Long Range Outdoor Access Point with 1x2.5 Gigabit network port with PoE+ and 1x 2.5 Gigabit SFP port.
The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage. It offers IP66-level weatherproof capability, dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. It supports flexible switching between internal directional antennas and external omnidirectional antennas. It can be combined with directional antenna and PTMP technology (pending) to serve as a professional long-range wireless bridge.
With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7670LR uses a controller-less distributed network management design in which the controller is embedded within the product’s Web User Interface. The GWN7670LR is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform.
It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real- time applications, mesh networks, captive portals, BLE 5.3, 256 concurrent clients per AP, 1x2.5 Gigabit network port with PoE+ and 1x 2.5 Gigabit SFP port. GWN7670LR is an ideal long-range Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more.
- 3.6Gbps aggregate wireless throughput, 2.5Gigabit Ethernet Port, and 2.5Gigabit SFP Port
- Integrated Wi-Fi 7 and Dual band 2x2:2 MIMO with DL/UL OFDMA technology
- Up to 350-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE+
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
|
Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac/ax/be |
|
SSIDs |
32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
|
Concurrent Clients |
256 |
|
Antenna |
2.4GHz: Directional internal 8dBi/External omni 3.5dBi, 5GHz: Directional internal 13.5dBi/External omni 3.5dBi |
|
Bluetooth |
5.0dBi |
|
Directional internal antenna beamwidth |
2.4GHz: 90 degree, 5GHz: 35 degree |
|
MIMO |
2.4GHz: 2x2:2, MIMO, 5GHz: 2x2:2, MIMO |
|
Frequency Bands |
2.4GHz Radio: 2400 - 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz |
|
Channel Bandwidth |
2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz |
|
Wi-Fi Data Rates |
2.4GHz IEEE 802.11be/ax/n/b/g: Up to 688 Mbps, 5GHz IEEE 802.11be/ax/ac/n/a: Up to 2882 Mbps |
|
Max Receiver Sensitivity |
2.4GHz: -96dBm, 5GHz: -73dBm |
|
Coverage Range |
Up to 350 meters *Coverage range can vary based on environment |
|
Point to Multipoint |
1 to 3 Up to 1.5 kilometres |
|
Bluetooth |
BLE 5.3 |
|
Network Ports |
1x 2.5G Ethernet WAN/LAN, RJ-45, PoE input, 1x 2.5G SFP |
|
LEDs |
1x tri-colour LED for device tracking and status indication, 4x blue LED for signal strength indication (PtMP mode) |
|
Auxiliary Ports |
1x Reset Pinhole |
|
Power PoE Input |
802.3at |
|
Maximum Power consumption |
15.5W |
|
Functions |
Beamforming, OFDMA, Multi-RU, Preamble puncturing, 4096-QAM, Multilink operation (MLO), Target wake time (TWT), Maximal Ratio Combining (MRC), Space-Time Block Coding (STBC), Low-density Parity-Check (LDPC), 802.11 Dynamic Frequency Selection (DFS), BSS colouring |
|
SSID Hidden |
Restrict access and improve wireless network security by SSID hiding |
|
Port Aggregation |
Multiple uplink ports for port aggregation to increase uplink bandwidth |
|
Multicast/Broadcast Suppression |
Multicast/Broadcast enable optimization with ARP proxy |
|
Multicast Enhancement |
Convert multicast data into unicast data for transmission |
|
Bandwidth Limiting |
Support SSID/Client/MAC/IP-based rate limiting |
|
Band Steering/Client Steering |
Guide client to the frequency band with more abundant spectrum resources |
|
RRM |
Dynamically assign radio power, channel |
|
VPN |
L2TPv3 |
|
VLAN |
Support interface/SSID/MAC binding VLAN based, Management VLAN, Dynamic VLAN |
|
Time Policy |
Track the time that the client connects to Wi-Fi, Support setting the amount of time for the client to connect to Wi-Fi and the reconnect type after a timeout |
|
Schedule |
Supports SSID, LED, Reboot schedule |
|
WLAN Extension Bridge |
Supported |
|
Mesh |
2.4G, 2.4G & 5G, 5G |
|
Hotspot2.0 |
Supported |
|
Wireless Roaming |
802.11k, 802.11v, 802.11r, Layer 2 roaming |
|
Encryption |
Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
|
Management Protocol |
TR-069, SNMP |
|
Physical |
Dimension Unit: 223.2 x 169.9 x 53.9 mm, Entire Package: 376 × 321 × 138 mm, Weight Unit: 1.2kg, Entire Package: 2.7kg |
|
Mounting |
Wall mount or pole mount, kits included |
|
Environmental Temperature |
Operation: -30°C to 60°C, Storage: -40°C to 70°C, Humidity 10% to 90% Non-condensing |
|
Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac/ax/be |
|
SSIDs |
32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
|
Concurrent Clients |
256 |
|
Antenna |
2.4GHz: Directional internal 8dBi/External omni 3.5dBi, 5GHz: Directional internal 13.5dBi/External omni 3.5dBi |
|
Bluetooth |
5.0dBi |
|
Directional internal antenna beamwidth |
2.4GHz: 90 degree, 5GHz: 35 degree |
|
MIMO |
2.4GHz: 2x2:2, MIMO, 5GHz: 2x2:2, MIMO |
|
Frequency Bands |
2.4GHz Radio: 2400 - 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz |
|
Channel Bandwidth |
2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz |
|
Wi-Fi Data Rates |
2.4GHz IEEE 802.11be/ax/n/b/g: Up to 688 Mbps, 5GHz IEEE 802.11be/ax/ac/n/a: Up to 2882 Mbps |
|
Max Receiver Sensitivity |
2.4GHz: -96dBm, 5GHz: -73dBm |
|
Coverage Range |
Up to 350 meters *Coverage range can vary based on environment |
|
Point to Multipoint |
1 to 3 Up to 1.5 kilometres |
|
Bluetooth |
BLE 5.3 |
|
Network Ports |
1x 2.5G Ethernet WAN/LAN, RJ-45, PoE input, 1x 2.5G SFP |
|
LEDs |
1x tri-colour LED for device tracking and status indication, 4x blue LED for signal strength indication (PtMP mode) |
|
Auxiliary Ports |
1x Reset Pinhole |
|
Power PoE Input |
802.3at |
|
Maximum Power consumption |
15.5W |
|
Functions |
Beamforming, OFDMA, Multi-RU, Preamble puncturing, 4096-QAM, Multilink operation (MLO), Target wake time (TWT), Maximal Ratio Combining (MRC), Space-Time Block Coding (STBC), Low-density Parity-Check (LDPC), 802.11 Dynamic Frequency Selection (DFS), BSS colouring |
|
SSID Hidden |
Restrict access and improve wireless network security by SSID hiding |
|
Port Aggregation |
Multiple uplink ports for port aggregation to increase uplink bandwidth |
|
Multicast/Broadcast Suppression |
Multicast/Broadcast enable optimization with ARP proxy |
|
Multicast Enhancement |
Convert multicast data into unicast data for transmission |
|
Bandwidth Limiting |
Support SSID/Client/MAC/IP-based rate limiting |
|
Band Steering/Client Steering |
Guide client to the frequency band with more abundant spectrum resources |
|
RRM |
Dynamically assign radio power, channel |
|
VPN |
L2TPv3 |
|
VLAN |
Support interface/SSID/MAC binding VLAN based, Management VLAN, Dynamic VLAN |
|
Time Policy |
Track the time that the client connects to Wi-Fi, Support setting the amount of time for the client to connect to Wi-Fi and the reconnect type after a timeout |
|
Schedule |
Supports SSID, LED, Reboot schedule |
|
WLAN Extension Bridge |
Supported |
|
Mesh |
2.4G, 2.4G & 5G, 5G |
|
Hotspot2.0 |
Supported |
|
Wireless Roaming |
802.11k, 802.11v, 802.11r, Layer 2 roaming |
|
Encryption |
Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
|
Management Protocol |
TR-069, SNMP |
|
Physical |
Dimension Unit: 223.2 x 169.9 x 53.9 mm, Entire Package: 376 × 321 × 138 mm, Weight Unit: 1.2kg, Entire Package: 2.7kg |
|
Mounting |
Wall mount or pole mount, kits included |
|
Environmental Temperature |
Operation: -30°C to 60°C, Storage: -40°C to 70°C, Humidity 10% to 90% Non-condensing |
