• Managed
  • 10 Gigabit

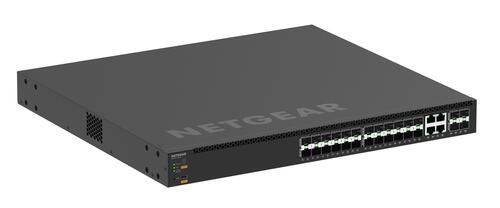

  • 24-Port Fully Managed Layer 3 SFP Switch, 24x1G/2.5G SFP, 4x10G Combo Copper / SFP+ (MSM4328F)

NETGEAR MSM4328F-100AJS 24-Port Fully Managed Layer 3 SFP Switch, 24x1G/2.5G SFP, 4x10G Combo Copper / SFP+ (MSM4328F)

24-Port Fully Managed Layer 3 SFP Switch, 24x1G/2.5G SFP, 4x10G Combo Copper / SFP+ (MSM4328F)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

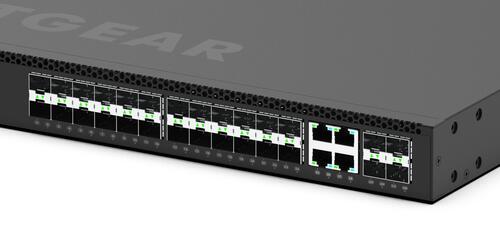

  • 24 1G/2.5GBASE-X SFP ports, and 4 Combo 10GBASE-T Copper / 10GBASE-X SFP+ ports.
  • 240W internal power supply.
  • 1 slot for modular power supply (1+1 redundancy).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
  • Ideal for Audio over IP deployments as a core connecting to 1G M4250 switches (SFP ports).
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Width : 440mm
Depth : 400mm
Height : 43.2mm
Weight : 7.38Kg (16.26lb)
Primary Port Speed : 1 / 2.5 Gigabit
Number of Ports : 28 (24 x 1G/2.5G SFP, 4 Combo 10GBASE-T Copper / 10G SFP+)
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support
Acoustics : Quiet Mode 30dB@25ºC

Power Consumption : Max: 115.5W/393.84Btu/hr
Standby without any port connection: 39W/132.87Btu/hr

PSU Compatible Models

APS600Wv3

APS1200Wv2

APS2000Wv2
