Robustel B007702 LTE CAT1 Modem, 1xSIM, 1xRS232, 1x mini USB 2.0, Variable 6~36VDC Power Input (M1000-MP4LA)

LTE CAT1 Modem, 1xSIM, 1xRS232, 1x mini USB 2.0, Variable 6~36VDC Power Input (M1000-MP4LA)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

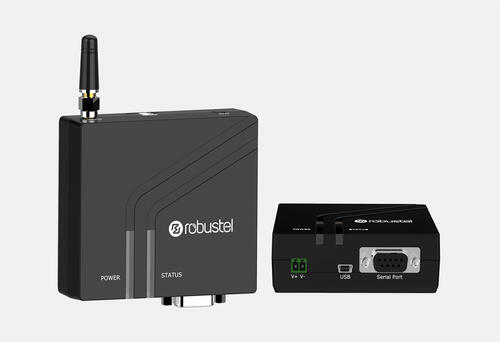

The Robustel Industrial Cellular Modem M1000 MP is a compact cellular modem designed for GSM/GPRS/EDGE/UMTS/HSPA+/LTE Cat 1 networks. It offers state-of-the-art 2G, 3G, and 4G connectivity for machine-to-machine (M2M) applications, ensuring reliable data transmission for users.

Its standards-compliant industrial design meets diverse application needs, while the M1000 MP incorporates a high-performance module and supports both a serial port and a high-speed USB port.

  • Control via AT commands (Hayes 3GPP TS 27.007 and 27.005)
  • TCP/IP connectivity and SMS transmission through AT commands
  • Supports 1 x RS-232 port
  • Supports1 x mini USB 2.0 high-speed port
  • Robust industrial design accommodating 6 ~ 36 V DC, with options for desktop, wall, or DIN rail mounting
  • 4G frequencies : B1/B3/B7/B8/B20/B28
  • Cellular Interface

Number of antennas

1 (MAIN)

Connector

SMA-K

SIM

1 x Mini SIM (2 FF)

Standards

GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+/LTE Cat 1



Serial Port

Number of ports

1 x RS-232

Connector

DB9 female

Baud rate

1200 bps ~ 115200 bps

Signal definition

RS-232: RxD, TxD, RTS, CTS, GND



USB Port

Number of ports

1 x Mini USB

Connector

Mini female

Speed

2.0 high speed, up to 480 Mbit/s



Others

Reset button

1 x RST

LED indicators

1 x POWER, 1 x STATUS



Power Supply and Consumption

Connector

2-pin 3.5 mm female socket

Input voltage

12/24 V DC, 6 ~ 36 V DC

Reverse polarity protection, surge protection

Power consumption

Idle: 1 W@12 V

Max: 2.5 W@12 V

Recommended power supply

12 V DC/1.0 A power adapter



Physical Characteristics

Ingress protection

IP30

Housing & Weight

Plastic, 90 g

Dimensions

28.5 x 75 x 85 mm

Installations

Desktop, wall mounting and 35 mm DIN rail mounting

Operating temperature

-20 ~ +70 °C

Storage temperature

-40 ~ +85 °C

Relative humidity

5 ~ 95% RH (non-condensing)



Regulatory and Type Approvals

Environmental

RoHS 2.0, WEEE
