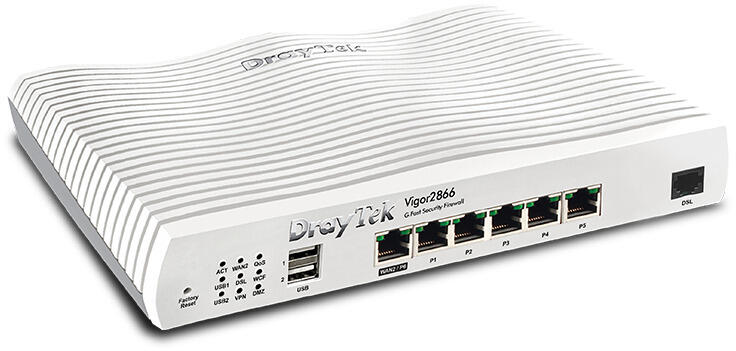

DrayTek DV2866 Multi-WAN router, VDSL2, 1x GbE WAN/LAN, 5x GbE LAN, VPN

Multi-WAN G.fast/VDSL2 35b Supervectoring & Ethernet Security Firewall Routers for SMB
The Vigor2866 series routers support multi-WAN with one xDSL WAN port and one configurable Ethernet WAN port. The built-in xDSL modem is compatible with VDSL2 including profile 35b supervectoring, ADSL2+, and G.fast which can deliver fibre-like speeds up to 1 Gbps. The WANs can be configured in either load-balance or failover modes to maximise Internet bandwidth and up-time.
The Vigor 2866 series features VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more. The Vigor2866ax model also supports 802.11ax (WiFi 6, AX3000) wireless features.
- Multi-WAN with 1 x G.fast WAN port which is backward compatible with VDSL2 35b Supervectoring / ADSL2+, 1 x configurable GbE WAN/LAN port, 2 x USB ports and 2 x Wi-Fi WANs for (ac/Vac models)
- 1 x XDSL port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
- 2 x USB 2.0 ports for 3G/4G LTE USB modems, FTP server, network printer or thermometer
- 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
- 32 x VPN tunnels (including 16 x Open VPN/ SSL-VPN tunnels) with comprehensive secure protocols
- Fast VPN throughput, VPN Load Balancing and backup for site-to-site VPN applications
- Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.8Gbps (Multi-WAN) Firewall speed
- 16 x VLANs for secure and efficient workgroup management
- IPv6 & IPv4
- Up to 1022 IP addresses and 8 IP subnets
- High Availability mode
- Object-based SPI Firewall and CSM (Content Security Management) for network security
- Supports VigorACS 2 and VigorACS 3 Central Management software for remote management
- SD WAN capability when used with VigorACS 3
- Central VPN Management for up to 8 remote Vigor routers
- Central AP Management for up to 20 Vigor Access Points
- Central Switch Management for up to 10 VigorSwitches
Load Balancing
Maximise throughput and reliability by using multiple Internet connections.
xDSL Modem
Integrated xDSL modem supporting G.fast to deliver fiber-like DSL speed.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of the Vigor2866 Series to remote offices and teleworkers over the Internet.
SSL VPN
SSL VPNs work through firewalls providing secure remote access to any network environment.
Bandwidth Management
Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.
Firewall & Content Filter
Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.
VoIP Friendly
The Vigor2866 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.
DrayDDNS
Free DDNS service to access the router using a fixed hostname of your choice.
Central AP Management
Use the Vigor2866 router as a wireless controller to maintain and monitor VigorAPs.
Central Switch Management
Set up VLANs easily from the router and get a centralised hierarchy view of the switches.
Hardware Acceleration
Without sacrificing traffic control features such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph and Data Flow Monitor, Hardware Acceleration enhances performance for:
NAT & routing connections
QoS
IPsec VPN
Hardware NAT & Routing
With Hardware Acceleration and Hardware QoS enabled, the router supports up to 8k NAT and routing connections, and firewall performance reaching 940Mbps on single WAN and 1.8Gbps combined performance on multi-WANs.
Hardware QoS
Hardware QoS allows prioritization of applications and services on DrayTek routers, to improve performance of critical applications such as VoIP, conferencing and video streaming, etc. Furthermore, it allows flexible bandwidth allocation to suit business requirements.
Hardware IPsec
While the Vigor2866 series already has improved IPsec performance over the previous Vigor2862 series, with Hardware Acceleration enabled, IPsec performance can now reach 800 Mbps. The first 16 tunnels are automatically accelerated on a first come first serve basis. If any drops out, a new tunnel will be put into the accelerator automatically to top off 16 accelerated tunnels.
APP QoS
Application QoS allows prioritisation of applications and services on DrayTek routers to improve and enhance critical applications such as VoIP, conferencing and video streaming, etc. It also allow flexible bandwidth allocation to suit business requirements.
VoIP First
VoIP is always a top priority! The default VoIP port, UDP 5060 (configurable) has priority out-of-box with QoS.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
Interface |
|
Fixed WAN Port |
1 x RJ-11 for G.fast/VDSL2 35b/ADSL2+ |
LAN/WAN Switchable Port |
1 x 10/100/1000Base-TX RJ-45 |
Fixed LAN Port |
5 x 10/100/1000Base-TX RJ-45 |
USB Port |
2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
Performance |
|
NAT Throughput |
800 Mbps |
NAT Throughput |
940 Mbps (Single Ethernet or xDSL WAN) |
IPsec VPN Performance |
300 Mbps (AES 256 bits) |
SSL VPN Performance |
150 Mbps |
Max. Number of NAT Sessions |
60,000 |
Max. Concurrent VPN Tunnels |
32 |
Max. Concurrent OpenVPN / SSL-VPN |
16 |
VDSL/G.fast/ADSL |
|
VDSL Standards |
ITU-T G.993.2 Annex A/B/M/Q |
VDSL2 Profile |
8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b |
G.fast Profile |
106Mhz, 212Mhz (AU) |
ADSL Standards |
ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
Other Standards |
ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
Band Plan |
998, 997 |
Internet Connection |
|
IPv4 |
PPPoE, DHCP, Static IP, PPTP/L2TP |
IPv6 |
PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
802.1p/q Multi-VLAN Tagging |
|
Multi-VLAN/PVC |
|
Wireless WAN |
2 (ac/Vac models) |
3G/4G/LTE WAN with USB modem |
|
Load Balancing |
IP-based, Session-based |
WAN Active on Demand |
Link Failure, Traffic Threshold |
Connection Detection |
ARP, Ping |
WAN Data Budget |
|
Dynamic DNS |
|
DrayDDNS |
LAN Management |
|
VLAN |
802.1q Tag-based, Port-based |
Max. Number of VLAN |
16 |
Number of LAN Subnet |
8 |
DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias |
|
Wired 802.1x Authentication |
|
Port Mirroring |
|
Local DNS Server |
|
Conditional DNS Forwarding |
|
Hotspot Web Portal |
|
Hotspot Authentication |
Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking |
|
Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP (IPv4) |
Policy-based Routing |
Protocol, IP Address, Port, Domain, Country |
High Availability |
|
DNS Security (DNSSEC) |
|
IGMP |
IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
Local RADIUS server |
|
SMB File Sharing |
(Requires external storage) |
VPN |
|
LAN-to-LAN |
|
Teleworker-to-LAN |
|
Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
User Authentication |
Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication |
Pre-Shared Key, X.509 |
IPsec Authentication |
SHA-1, SHA-256 |
Encryption |
MPPE, DES, 3DES, AES |
VPN Redundancy |
Load Balancing, Failover |
Single-Armed VPN |
|
NAT-Traversal (NAT-T) |
|
DrayTek VPN Matcher |
|
Firewall & Content Filtering |
|
NAT |
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
VPN Pass-Through |
PPTP, L2TP, IPsec |
IP-based Firewall Policy |
|
Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Category* (* subscription required) |
DoS Attack Defence |
|
Spoofing Defence |
Bandwidth Management |
|
IP-based Bandwidth Limit |
|
IP-based Session Limit |
|
QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port, Application |
VoIP Prioritisation |
|
Management |
|
Local Service |
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
Config File Export & Import |
|
Config File Compatibility |
Vigor2862 |
Firmware Upgrade |
TFTP, HTTP, TR-069 |
2-Level Administration Privilege |
|
Access Control |
Access List, Brute Force Protection |
Notification Alert |
SMS, E-mail |
SNMP |
v1, v2c, v3 |
Syslog |
|
Managed by VigorACS |
|
Central VPN Management |
8 remote Vigor routers |
Central AP Management |
20 VigorAPs |
Mesh Network |
7 VigorAPs (Lac model) |
Central Switch Management |
10 VigorSwitches |
Physical |
|
Power Supply |
DC 12V @ 2A |
Max. Power Consumption |
26.4 watts max (Vac model) |
Dimension |
241mm x 166mm x 46mm |
Weight |
680g max (Vac model) |
Operating Temperature |
0 to 45°C |
Storage Temperature |
-25 to 70°C |
Operating Humidity (non-condensing) |
10 to 90% |
Interface |
|
Fixed WAN Port |
1 x RJ-11 for G.fast/VDSL2 35b/ADSL2+ |
LAN/WAN Switchable Port |
1 x 10/100/1000Base-TX RJ-45 |
Fixed LAN Port |
5 x 10/100/1000Base-TX RJ-45 |
USB Port |
2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
Performance |
|
NAT Throughput |
800 Mbps |
NAT Throughput |
940 Mbps (Single Ethernet or xDSL WAN) |
IPsec VPN Performance |
300 Mbps (AES 256 bits) |
SSL VPN Performance |
150 Mbps |
Max. Number of NAT Sessions |
60,000 |
Max. Concurrent VPN Tunnels |
32 |
Max. Concurrent OpenVPN / SSL-VPN |
16 |
VDSL/G.fast/ADSL |
|
VDSL Standards |
ITU-T G.993.2 Annex A/B/M/Q |
VDSL2 Profile |
8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b |
G.fast Profile |
106Mhz, 212Mhz (AU) |
ADSL Standards |
ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
Other Standards |
ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
Band Plan |
998, 997 |
Internet Connection |
|
IPv4 |
PPPoE, DHCP, Static IP, PPTP/L2TP |
IPv6 |
PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
802.1p/q Multi-VLAN Tagging |
|
Multi-VLAN/PVC |
|
Wireless WAN |
2 (ac/Vac models) |
3G/4G/LTE WAN with USB modem |
|
Load Balancing |
IP-based, Session-based |
WAN Active on Demand |
Link Failure, Traffic Threshold |
Connection Detection |
ARP, Ping |
WAN Data Budget |
|
Dynamic DNS |
|
DrayDDNS |
LAN Management |
|
VLAN |
802.1q Tag-based, Port-based |
Max. Number of VLAN |
16 |
Number of LAN Subnet |
8 |
DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias |
|
Wired 802.1x Authentication |
|
Port Mirroring |
|
Local DNS Server |
|
Conditional DNS Forwarding |
|
Hotspot Web Portal |
|
Hotspot Authentication |
Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking |
|
Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP (IPv4) |
Policy-based Routing |
Protocol, IP Address, Port, Domain, Country |
High Availability |
|
DNS Security (DNSSEC) |
|
IGMP |
IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
Local RADIUS server |
|
SMB File Sharing |
(Requires external storage) |
VPN |
|
LAN-to-LAN |
|
Teleworker-to-LAN |
|
Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
User Authentication |
Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication |
Pre-Shared Key, X.509 |
IPsec Authentication |
SHA-1, SHA-256 |
Encryption |
MPPE, DES, 3DES, AES |
VPN Redundancy |
Load Balancing, Failover |
Single-Armed VPN |
|
NAT-Traversal (NAT-T) |
|
DrayTek VPN Matcher |
|
Firewall & Content Filtering |
|
NAT |
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
VPN Pass-Through |
PPTP, L2TP, IPsec |
IP-based Firewall Policy |
|
Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Category* (* subscription required) |
DoS Attack Defence |
|
Spoofing Defence |
Bandwidth Management |
|
IP-based Bandwidth Limit |
|
IP-based Session Limit |
|
QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port, Application |
VoIP Prioritisation |
|
Management |
|
Local Service |
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
Config File Export & Import |
|
Config File Compatibility |
Vigor2862 |
Firmware Upgrade |
TFTP, HTTP, TR-069 |
2-Level Administration Privilege |
|
Access Control |
Access List, Brute Force Protection |
Notification Alert |
SMS, E-mail |
SNMP |
v1, v2c, v3 |
Syslog |
|
Managed by VigorACS |
|
Central VPN Management |
8 remote Vigor routers |
Central AP Management |
20 VigorAPs |
Mesh Network |
7 VigorAPs (Lac model) |
Central Switch Management |
10 VigorSwitches |
Physical |
|
Power Supply |
DC 12V @ 2A |
Max. Power Consumption |
26.4 watts max (Vac model) |
Dimension |
241mm x 166mm x 46mm |
Weight |
680g max (Vac model) |
Operating Temperature |
0 to 45°C |
Storage Temperature |
-25 to 70°C |
Operating Humidity (non-condensing) |
10 to 90% |
