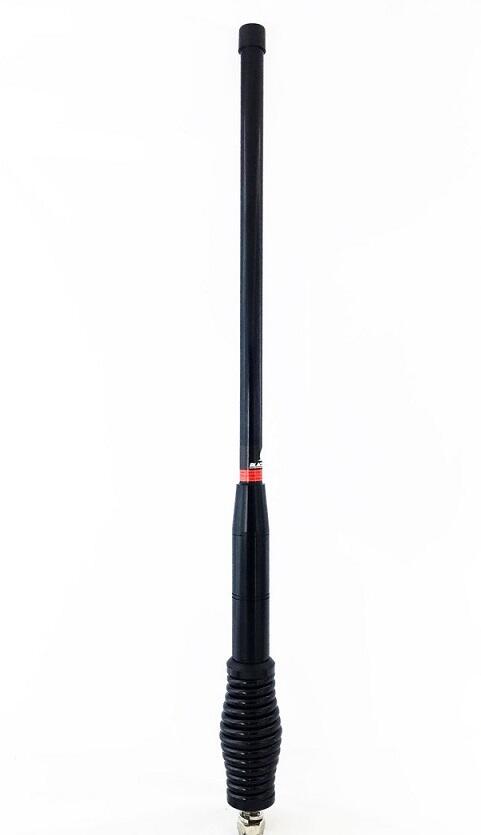

The Blackhawk Omni Trucker Edge Antenna (1070mm) will provide the perfect solution for voice and data applications where high gain antennas are required while on the move.
Combine with Cel-Fi applications to never be out of contact when away from home.
Frequency Range 698-960 MHz / 1710-2170 MHz
Input Impedance 50 Ω
Peak Gain 6 / 8 dBi
VSWR ≤3.0:1 / ≤2.0:1
Polarisation Vertical, linear
Horizontal Beam-width 360° (omni-directional)
Vertical Beam-width 22 / 12°
Maximum Input Power 50 W
Future-proof your vehicle installations with this high grade, ruggedised Omni Trucker Edge antenna. This premium-grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.
6 dBi gain across lower bands 698-960 MHz
8 dBi gain across upper bands 1710-2170 MHz
Ruggedised construction for extreme conditions
Extra heavy-duty spring stainless steel base ideal for bull bar mount
No tuning necessary
Operating Temperature -40°C-+70°C
Termination SMA – male
Dimensions 1070 x Ø32.5 mm
Antenna Colour Black
Rated Wind Velocity 210 km/h
Diameter of installing pole 32.5mm
Included are 4.5 metres of L-240 Ultra Flex cable fitted with SMA/M connector
