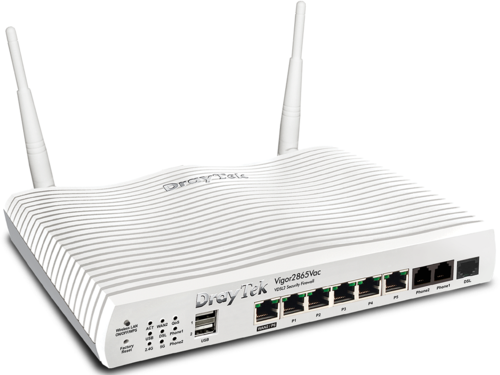

DrayTek DV2865VAC ADSL / VDSL / UFB Router with Firewall and VPN, VoIP, 11ac WiFi

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Multi-WAN router with 1 x VDSL2 35b modem, 1 x configurable GbE WAN/LAN port, 5 x GbE LAN ports, SPI Firewall, 802.11ac (AC1300) Wi-Fi, VoIP (2 x FXS), and 32 x VPN tunnels including 16 x SSL-VPN

The Vigor2865 Series is a VDSL2 35b/ADSL2+ Security Firewall router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a Gigabit Ethernet WAN port for broadband connections to share the traffic load or serve as a failover connection. 3G/4G/LTE USB modems can also be attached to the USB ports of the router.

VDSL2 35b
Download speed up to 300 Mbps

Up to 6 WAN
Load balancing, NAT throughput up to 800 Mbps

32 VPN
IPsec VPN throughput up to 300 Mbps

60k Sessions
Recommended for 30 clients

802.11ac Wireless

  • 2x External Dipole Wirelss Antennas (Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz)
  • Number of SSID : 4 per radio band
  • Security Mode : WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
  • Authentication : Pre-Shared Key, 802.1X
  • WPS : PIN, PBC
  • WDS : Repeater (5GHz only)
  • Access Control : Access List, Client Isolation, Hide SSID, WLAN Scheduling
  • AirTime Fairness
  • Band Steering
  • MU-MIMO  (5GHz Only)
  • WMM

VoIP Gateway

  • Protocol SIP, RTP/RTCP, ZRTP
  • SIP Registrars 12
  • Dial Plan Phone Book, Digit Map, Call Barring, Regional
  • Call Features Call Waiting, Call Transfer, Scheduled DND, Hotline
  • Voice Codec G.711 A/u law, G.723.1, G.726, G.729 A/B
  • Caller ID FSK_ETSI, FSK_BELLCORE, DTMF


Multi-WAN with 1 x VDSL2 35b or ADSL2/2+ WAN port, 1 x configurable GbE WAN/LAN port,  2 x USB ports and 2 x Wi-Fi WANs (ac/Vac model)

  • 1 x XDSL port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
  • 35b Supervectoring VDSL2
  • 2 x USB 2.0 ports for connection of 3G/4G LTE USB modems, FTP server, network printer and thermometer
  • 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
  • 32 x VPN tunnels (including 16 x OpenVPN/ SSL-VPN tunnels) with comprehensive secure protocols
  • Fast VPN throughput, VPN Load Balancing and backup for site-to-site applications
  • 16 x VLANs for secure and efficient workgroup management
  • IPv6 & IPv4
  • Up to 1022 IP addresses and 8 IP subnets
  • Integrated IEEE 802.11ac (AC1300) wireless Access Point; dual band; up to 867 Mbps throughput (ac/Vac model)
  • High Availability mode
  • Object-based SPI Firewall and CSM (Content Security Management) for network security
  • VoIP (2 x FXS and 1 x FXO Line Port) for Vigor2865Vac
  • Supports VigorACS 2 and VigorACS 3 Central Management Systems for remote management Learn More
  • SD WAN capability when used with VigorACS 3
  • Central VPN Management for 8 remote Vigor routers
  • Central AP Management for 20 Vigor Access Points
  • Central Switch Management for 10 VigorSwitches
