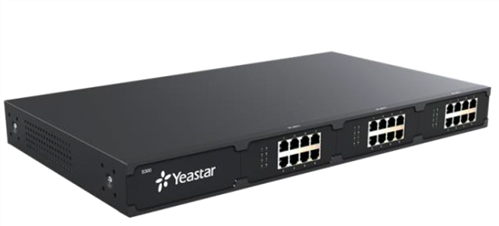

IP PBX - 300 Users / 60 Concurrent Calls - Expandable to 500 Users / 120 Calls
S300 delivers enterprise-class IP telephony services with a base configuration that supports 300 users. Expandable to 500 users, S300 grows with you business and supports up to 24 analog ports, up to 24 BRI ports, up to 3 E1/T1/PRI ports, and up to 6 GSM channels.
Optional Expansion Boards
Yeastar S300 supports up to 3 Expansion boards and 2 DSP modules.
EX08 board supports up to 4 modules (8 ports).
* O2 Module
* S2 Module
* SO Module
* B2 Module
* GSM Module
* 3G Module
EX30 board supports 1 E1/T1 port.
D30 is a DSP module, used to expand the capacity of PBX. With per D30 module added, the extensions increase by 100 and concurrent calls increase by 30. So with two DSP modules installed, you can acheive 500 users and 120 calls in total.
Yeastar S-Series VoIP PBX
Performance and Power
Designed with the small and medium sized enterprises in mind, supporting up to 500 users and built using the very latest technology, the Yeastar S-Series delivers exceptional cost savings,
productivity and efficiency improvements, delivering power, performance, quality and peace of mind.
The all new S-Series is engineered for the communications needs of today and tomorrow, and with the Yeastar unique modular design future proofs your investment choice.
The Easy-to-use Solution
The S-Series features fast installation with comprehensive auto provisioning, advanced plug and play capability, together with an intuitive Metro UI driven by point-and-click configuration, from any location.
Your Choice of Technologies and Features
With a unique modular design, the S-Series will install into the most demanding of environments. You can also take advantage of advanced enterprise grade features with the fullest and most complete software versions.
Telephone System without Risk
S-Series is built with the future in mind, utilizing the latest technology advances, from Freescale industrial grade Quad Core processors, TI DSP voice processors, and long-life power units and lightning protection.
Play Safe and Expect Reliability
With advanced failover, security, monitoring and reporting capabilities as standard, combined with an internal firewall and with support for TLS and SRTP encryption, there has never been such a robust system.
- Works with SIP/IAX2, PSTN lines, ISDN BRI, E1/T1/PRI, and GSM/3G
- Built-in call recording capability
- Powerful Apps (add-ons) include Auto Provision, LDAP, Conference Panel, VPN Server, and more coming soon
- Free lifetime software/firmware upgrade and above all, it’s super easy
- Connect multiple sites and remote users instantly
- No hidden charges and extra licensing fees
- Low power consumption (1.8-59.1 watt)
Automated Attendant (IVR)
Call Detail Records (CDR)
Dial by Name
Do Not Disturb (DND)
Email to SMS/SMS to Email
Fax to Email
Multi-language System Prompt
Multi-language Web GUI
Music on Hold
One Touch Recording
Real-time Status Monitor
Voicemail to Email
