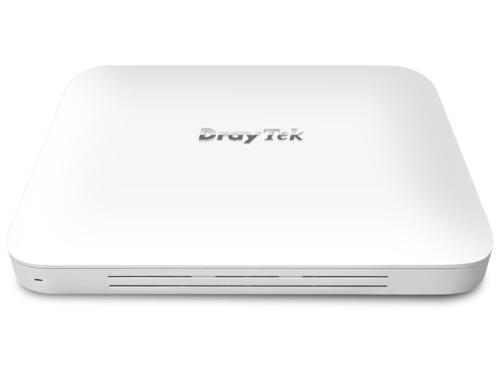

DrayTek DAP1000C Tri-Band 802.11ac Wave 2 Ceiling-Mount Mesh Access Point

Tri-Band Access Point with MU-MIMO / Beamforming features providing excellent Wi-Fi connectivity

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Tri-Band AC2150 Wi-Fi (400Mbps + 2 x 867Mbps)
  • 802.11ac Wave 2
  • Up to 26dBm TX Power
  • 2.4 GHz 11n 2×2, 256-QAM
  • 2 × 5 GHz 11ac 2×2
  • Plug-n-Play Meshing
  • 6 x Internal Dual-Band Antennas
  • 2 x GbE LAN ports, 1 with PoE powered
  • Operation Mode: AP / Mesh Node/ Range Extender
  • 1 × USB 2.0 port
  • Band Steering
  • Multiple SSID, WDS, Air Time Fairness, and Roaming
  • Ceiling or Wall mountable
  • Supports Central AP Management Learn more
  • Supports VigorACS 2 Central Management System for remote management
  • Supports VigorConnect free software for local network management

The VigorAP 1000C is a Tri-Band Access Point with MU-MIMO / Beamforming features providing excellent Wi-Fi connectivity. The Plug-n-Play Mesh technology in the VigorAP 1000C supports up to eight Access Points to be wirelessly interconnected as a Mesh group to provide extended wireless coverage. This can be quickly and easily set up using the built-in Quick Start Wizard or with the free Smartphone Wireless app available from DrayTek.

The Wi-Fi Mesh technology found in the VigorAP 1000C will improve the reliability of any network. Redundancy features ensure an alternative path is available in the event of an uplink connection failure, leading to continuity of Wi-Fi services.

The VigorAP 1000C features the latest Wi-Fi technology, 802.11ac Wave 2 in the 2 x 5 GHz bands and 802.11n in the 2.4 GHz band giving a combined throughput of 2134 Mbps (2 x 867Mbps for the 5 GHz band and 400Mbps for the 2.4 GHz band). The support of Multi-User MIMO (MU-MIMO) allows it to deliver high-performance wireless connections to multiple devices such as smartphones (up to 4) maximising bandwidth utilisation.

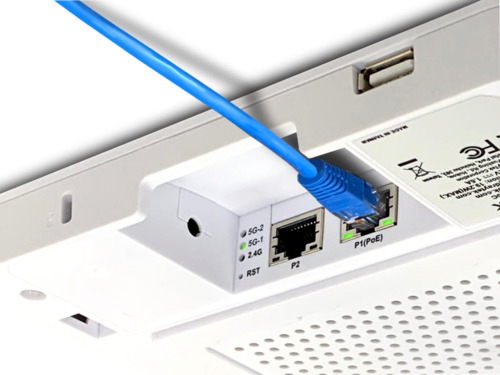

There are 2 x Gigabit Ethernet LAN ports, one of which is a PoE PD port. These ports can be divided into two segments: segment A and segment B.

Tri-Band
Concurrent 2 x 5GHz and 2.4GHz

AC2200
Delivers speed up to 2.2 Gbps

384 Users
Active at maximum, 128 per radio

2 x LAN Ports
2 x 10/100/1000M Base-T RJ-45

PoE Power Supply
Simplify the infrastructure by getting data and PoE powered through a single cable.

Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience.

Multiple SSID
Mapping Wi-Fi clients to different VLANs and have a different set of security standards

Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.

Airtime Fairness
Equalize the transmission time of each client so the legacy devices won’t slow everyone down.

Local RADIUS Server
User profile database for local and external 802.1x authentication.

Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.

Central AP Management
Manage, maintain, and monitor VigorAP 1000C from the DrayTek routers.

Physical
Environment : Indoor
Mounting : Ceiling Mount / Wall Mount
Power Method : DC / 802.3af/at PoE
Max. Power Consumption : 19.2 watts
Dimension : 176mm x 176mm x 30mm
Weight : 460 g
Operating Temperature : 0 to 45°C
Storage Temperature : -20 to 70°C
Operating Humidity : 10 to 90% non-condensing

In-the-Box
VigorAP 1000C AP
Ceiling Mount Bracket
Power Adapter
RJ-45 Cable (Ethernet)
Quick Start Guide
