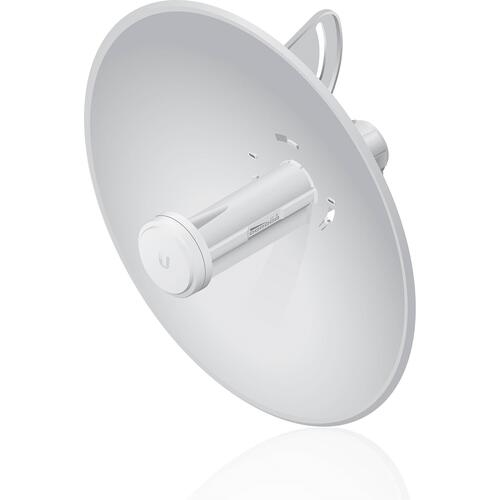

Ubiquiti PBE-M5-300 PowerBeam M5 802.11a/n Outdoor AP/Bridge, 400mW radio, PoE Incl

  • Improved Noise Immunity with tighter beamwidth
  • High speed links up to 20km
  • 26dBm TX Power
  • 22dBi Dual-Linear Antenna


Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Ubiquiti PowerBeam PBE-M5-300 400mW 802.11a/n 22dBi Antenna

  • 22 dBi Gain
  • 5725-5850 MHz Operating Frequency
  • Dual Linear Polarization
  • Pole Mounting Kit Included

Install the PowerBeam M5 5 GHz airMAX Bridge into a variety of network configurations including point-to-multipoint, wireless client, or point-to-point and take advantage of enhanced beamwidth technology. Built-in airMAX technology utilizes the Time Division Multiple Access (TDMA) signal which breaks down the signal into specified time slots to reduce collisions. As a result, you receive reduced latency, noise immunity, and improved throughput.

Integrated Radio Design
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam is versatile and cost-effective to deploy even at long distances.
airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class
airOS
airOS is a versatile, highly developed Ubiquiti firmware technology. It is intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high performance, outdoor multi-point networking.
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support
airView
Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
• Waterfall Aggregate energy over time for each frequency.
• Waveform Aggregate energy collected.
• Real-time Energy is shown in real time as a function of frequency.
• Recording Automate airView to record and report results.
airControl
airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling

Hardware Overview
Innovative Mechanical Design
• Metal-plated interior of rear housing enhances RF shielding.
• Built-in mechanical tilt mounting bracket offers ±20° of tilt.
• Convenient pole mounting with a single wrench to mount the PowerBeam on a pole.
Industrial-Strength Construction
• GEOMET-coated fasteners for improved corrosion resistance when compared with zinc-plated fasteners.
• Dish and brackets made of galvanized steel that are powder-coated for enhanced corrosion resistance.
