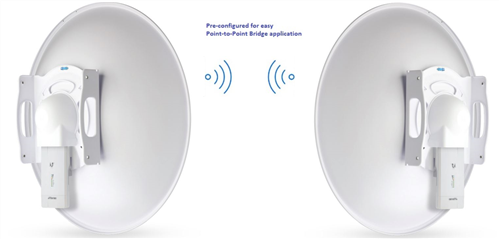

2 x AF-5XHD airFiber 5XHD PTP LTU Backhaul Radio, with 2 x AF-5G23-S45 Ubiquiti 5GHz 23dBi AF-5X Dish
The AF-5G23-S45 is a airFiber dish that has 23dBi gain.
The AF-5XHD radio offers the following advanced features:
• Programmable Transmit Power The radio's transmit power level can be programmed up to +29 dBm.
• Programmable Duty Cycle (GPS synchronized frames) The AF-5XHD allows configuration of asymmetric TX and RX duty cycles. TX ratios include 25%, 33%, 50%, 66.7%, and 75%.
• Configurable GPS Synchronization The AF-5XHD offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems.
• Split TX and RX Frequency* The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance.
• Split TX and RX Channel Bandwidth* Support for different channel bandwidths for TX and RX allows users to scale required data capacity more efficiently.
• Adaptive Modulation up to 1024QAM Adaptive modulation rates of up to 1024QAM (4096QAM with targeted upgrade) are supported.
• Dual Redundant Gigabit Ethernet Ports with PoE The AF-5XHD has two Gigabit Ethernet ports that can be used to provide redundant PoE power.
• OFDM and OFDMA Support* The radio offers flexible scheduling for 2, 4, or 8 subchannels.
• Bluetooth Wireless Configuration Use the built-in Bluetooth interface for wireless configuration.
• AlignLock™ Antenna Aiming Guard This alerts the user when the radio or antenna aiming is changed due to tampering, impact, or storm damage.
• User-Configurable Interference Mitigation Three user-selectable profiles support both high-interference and greenfield deployments for robust, optimal performance.
• Redundant Images for Fail-Safe Configuration Creation of backup firmware images ensures fail-safe configuration and enhances reliability.
• Persistent Spectrum Analysis with Dedicated RX Perform real-time spectral analysis for the full band on live links without interrupting the link operation.
• Wide Voltage Range, Enhanced Surge Protection The AF-5XHD has an operating voltage range of 19-50VDC2 and provides enhanced surge protection
