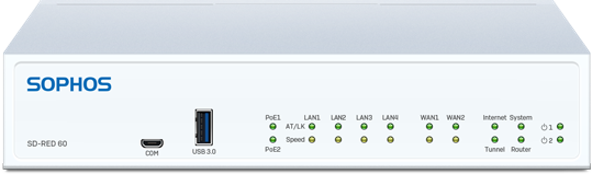

SOPHOS R60ZTCHAU SD-RED 60 High Performance Remote Branch Access Appliance, with PoE

SD-RED 60 High Performance Remote Branch Access Appliance, with PoE

SD-RED: Zero-Touch Edge and Branch Connectivity

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

SD-RED makes extending your secure network to all your remote locations easy and affordable. It requires no technical skills at the remote site. Simply enter the RED device ID into your XG Firewall and ship it. As soon as it’s plugged in and connected to the internet, our provisioning service automatically connects it to your firewall and establishes a secure, dedicated VPN tunnel. And there’s no added licensing cost for SD-REDs – it’s included in your XG Firewall Network Protection License.

An Innovative Solution to SD-WAN VPN Connectivity

  • Zero-touch auto provisioning enables deployment by non-technical staff
  • Secure VPN tunnel connectivity with your XG Firewall from anywhere via our lightweight robust Layer 2 RED tunnel
  • Selective routing options for any mix of VPN and local WAN access
  • Enterprise-grade encryption
  • Flexible connectivity options, including 3G/4G/LTE cellular, copper, fiber, and integrated Wi-Fi
  • 850 Mbps Maximum Throughput
  • 4x GE LAN Interfaces
  • 2 PoE Ports (total power 30W)
  • 2x GE WAN Ports (1 shared with SFP)
  • 1x SFP Port (shared port with WAN1)
  • 2 x USB 3, 1 x Micro-USB
  • Modular Bay for Optional Modules (Wi-Fi, 3G/4G)

RED60 Hardware Specifications
CPU : NXP LS1043A, 1.6 GHz, 4 Core
Memory : 1 GB DDR3
Storage : 4 MB NOR Plus 256 MB NAND
Capacity : Maximum Throughput 850 Mbps

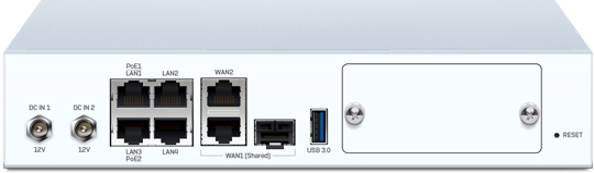

Physical Interfaces (Built-in) :
4 x 10/100/1000 Base-TX (1 GbE Copper)
2 x 10/100/1000 Base-TX (WAN1 shared port with SFP)
1x SFP Fiber (shared port with WAN1)
2 PoE Ports (total power 30W)
2 x USB 3.0 (front and rear)
1 x Micro-USB
Optional Connectivity :
Modular Bay 1 (for use with optional Wi-Fi OR 4G/LTE Card)
802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable
2x2 MIMO 2 antennas
MC7430/MC7455 Sierra Wireless Card
Optional SFP Modem

Physical Specifications
225 x 44 x 150 (w*h*d) mm
Weight : 1.0 kg/2.2 kg, Unpacked/Packed
Power Supply Adapter : AC Input: 110-240VAC @50-60 Hz
DC Output:  12V +/- 10%, 6.95A, 75W
Power Redundancy Support via optional 2nd power supply
Power Consumption Idle: 6.1Watt/20.814 BTU
Full Load: 22.6Watt/77.114 BTU
Temperature (operational) 0°C to 40°C (32°F to 104°F)
Temperature (storage) -20°C to 70°C (-4°F to 158°F)
Humidity  10-90% RH, non-condensing
