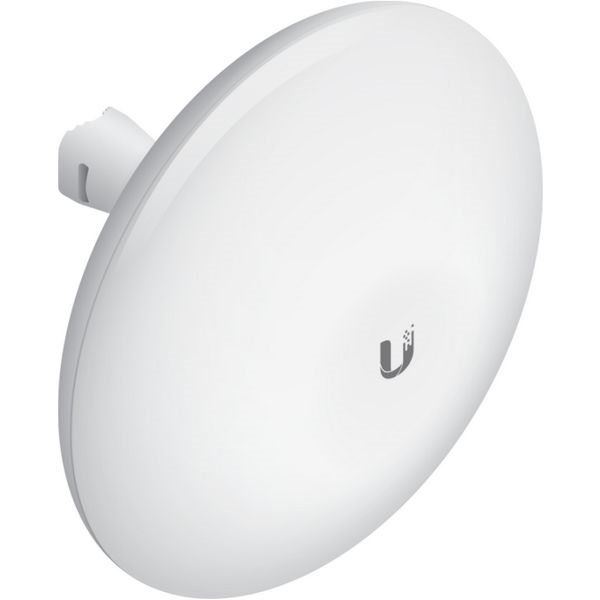

Ubiquiti NBE-M2-13 2.4GHz 802.11n 13dBi 630mW Outdoor Access Point

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 2.4 GHz Operating Frequency
  • 13 dBi Gain
  • 1 x Fast Ethernet Port
  • 64MB RAM / 8MB Flash Memory
  • Dedicated LED Status Indicators
  • Dual-Linear Polarization
  • Outdoor UV Stabilized Plastic Enclosure
  • Included Pole Mount Kit

Operating on the 2.4 GHz frequency, the NBE-M2-13 NanoBeam M 2.4 GHz 13dBi High Performance airMAX Bridge from Ubiquiti Networks is designed to offer enhanced wireless connectivity when used as a wireless client or in a point-to-point environment. This wireless bridge utilizes TDMA (time division multiple access) technology to ensure a stable and reliable connection that is capable of providing high speeds over long distances. In addition to TDMA support, the airMAX Bridge features intelligent QoS functionality to ensure high bandwidth tasks such as voice and video applications have the necessary network resources to operate smoothly.

Once installed, network administrators can take advantage of a variety of software applications to manage the network. With airOS it is possible to manage various aspects of the network itself from naming devices to MAC address permissions and much more. With airVIEW admins can utilize the included spectrum analyzer and see energy shown in real time and review a variety of reports. To provide an overall view of the entire network, airControl supports features including a network map, device status, the ability to mass upgrade firmware, and much more.

airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability.

Intelligent QoS
Priority is given to voice/video for seamless streaming
Scalability
High capacity and scalability
Long Distance
Capable of high-speed, carrier-class links

airOS
airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support

airView
Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference
Waterfall
Aggregate energy over time for each frequency
Waveform
Aggregate energy collected
Real-time
Energy is shown in real time as a function of frequency
Recording
Automate airView to record and report results
airControl
airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling

Innovative Mechanical Design
All-in-one design
The NanoBeam provides both the radio and antenna in a small footprint
Quick and easy installation
No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting
Convenient alignment
The NanoBeam pivots on its ball joint for easy aiming

Compact Form Factor
Efficient footprint
The radio and antenna are combined into a single body that takes up minimal space
Versatile mounting
The NanoBeam can be mounted in almost any position needed for line of sight
Aesthetics
The NanoBeam is small enough to blend discreetly into the background at a customer's location
