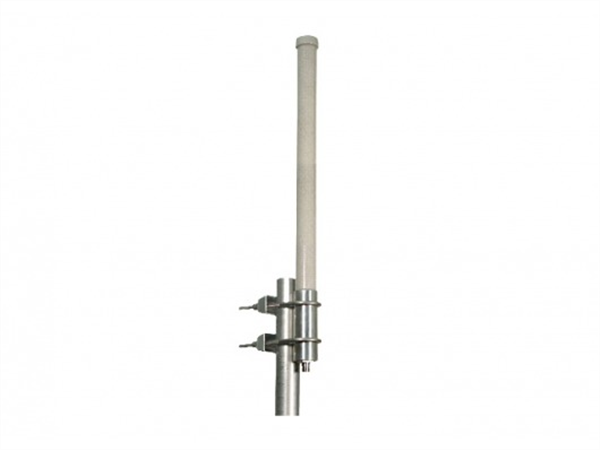

Hyperlink ANT-38 5.8 GHz 8dbi Omni directional Antenna
The HyperLink HG5808U is a very compact yet high performance omnidirectional WiFi antenna designed for the 5.8GHz ISM and UNII band. It is ideally suited for multipoint and mobile applications where high gain and wide coverage is desired.
Rugged and Weatherproof
The HG5808U construction features a fiberglass radome for durability and aesthetics. Included with the antenna, the mounting system features a heavy-duty steel bracket and U-Bolt for superior strength.
Features:
Durable UV-stable fiberglass radome for all weather operation
Sealed end cap and drain hole at the base for all weather operation
Integral N-Female connector
Antenna mounts included
Can be installed indoors as well as outdoors
Applications:
5.8GHz UNII applications
5.8GHz ISM applications
5.8GHz Wireless LAN systems
WiFi
Wireless Video Systems
Electrical Specifications
|
Frequency |
5725-5850 MHz |
|
Gain |
8 dBi |
|
Polarization |
Vertical |
|
Horizontal Beam Width |
360° |
|
Vertical Beam Width |
16° |
|
Impedance |
50 Ohm |
|
Max. Input Power |
100 Watts |
|
VSWR |
< 1.5:1 avg. |
|
Lightning Protection |
DC Short |
|
Connector |
N Female |
Mechanical Specifications
|
Weight |
0.2 kg |
|
Dimensions |
.78" (20 mm) Dia. x 13.7" (350 mm) |
|
Radome Material |
Gray Fiberglass |
|
Operating Temperature |
-40° C to 85° C |
|
RoHS Compliant |
Yes |
|
Mounting |
50.8 mm dia. mast max. |
