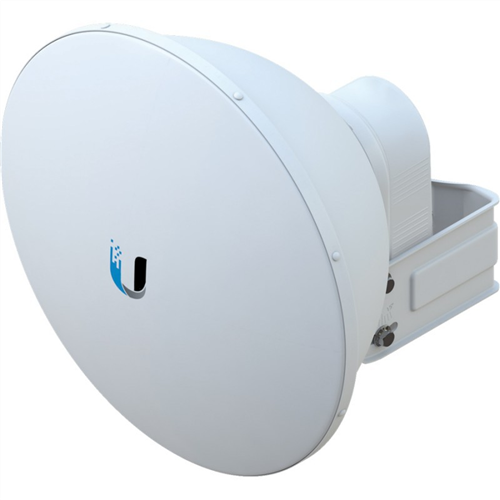

Ubiquiti AF-5G23-S45 5GHz airFiber Dish Antenna 23dBi, for AF-5X and AF-5XHD

The AF-5G23-S45 is a airFiber dish that has a frequency of 5GHz, 23dBi gain and a slant of 45deg in a 378mm diameter size.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

• Low sidelobes reduce interference from other transmitters in the area
• High isolation enhances performance for co-location in tower-mounted installations
• The low-profile design with integrated radome reduces wind-loading
• Housed in compact form factor (378mm diameter size)


• Dimensions: ∅378 x 290mm (∅14.88 x 11.42")
• Weight: 3.4kg (7.50lbs)
• Frequency Range: 5.1 - 5.9GHz
• Gain: 23dBi
• +45° Beamwidth: 10° (3dB)
• -45° Bewamwidth: 10° (3dB)
• F/B Ratio: 30dB
• Max. VSWR: 1.5:1
• Wind Loading: 190N @ 200km/h (43lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35dB Min.
• ETSI Specification: EN 302 326 DN2

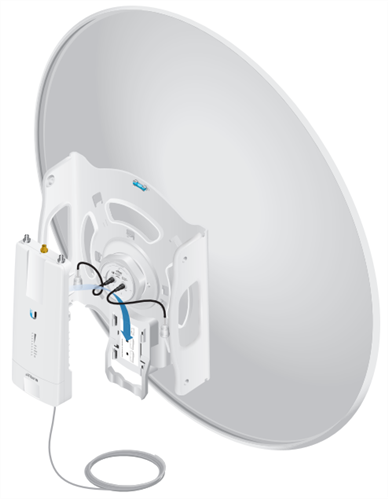

• Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
