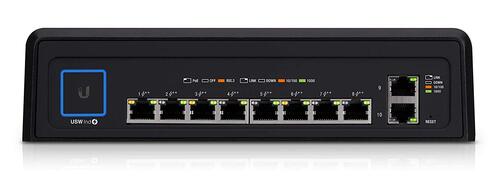

Ubiquiti USW-INDUSTRIAL UniFi Industrial Switch with Hi-power 802.3bt PoE Support
10-Port Durable Switch with High-Power 802.3bt PoE++
This UniFi Industrial Switch is a managed, plenum-rated, Gigabit Layer 2 switch with auto-sensing 802.3bt PoE++ support.
Eight ports offer auto-sensing 802.3af/at/bt PoE to provide up to 60W of power (per port) to power multiple devices on the network.
Ruggedized Industrial Design
The fanless UniFi Industrial Switch is plenum-rated so it can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminum enclosure has a black, powder coated finish for increased durability and greater resistance to corrosion. It can operate at full 450W power in environments up to 50° C.
Compatible Products
The USW-Industrial powers a variety of products, including the UniFi AC Mesh AP, UniFi Video Camera G4 Pro, and multiple UniFi LED Panels, which use 802.3at PoE+.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Dimensions
254 x 235 x 60 mm
Weight
3.85 kg
Enclosure Characteristics
Die-Cast Aluminium (ADC12) with Black Powder Coated Finish
Interfaces
Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports
Management: Ethernet In-Band
Total Non-Blocking Throughput
10 Gbps
Switching Capacity
20 Gbps
Forwarding Rate
14.88 Mpps
Power Method
100 - 240 VAC, 50/60 Hz Universal Input
Power Supply
AC/DC, Internal, 450W DC
Supported Voltage Range
AC Input: 100 to 240VAC, Max. 6A
Max. Power Consumption (Excluding PoE Output)
20W
LEDs
System: Status
RJ45 Ports: PoE, Speed/Link/Activity
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
Internal AC/DC @ 450W: -40 to 50% C (-40 to 122° F)
Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC, IC
PoE
PoE Interfaces
PoE++ IEEE 802.3bt
(Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE
802.3bt 60W
Voltage Range 802.3 PoE Mode
50-57V
Max. Total PoE Power Budget
430W
