Ubiquiti AF-2X airFiber 2.4 GHz Carrier Backhaul Radio

airFiber 2.4 GHz Carrier Backhaul Radio

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Optimal Operation in Unlicensed Bands: Channel width flexibility (3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, 56 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Ultra-Low Latency with HDD Technology: airFiber X is designed to provide the highest TDD throughput available and is engineered with proprietary Hybrid Division Duplexing (HDD) technology. In a backhaul link, two airFiber X radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronization. Packet transmission latency is virtually eliminated. Co-Location: Co-location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co-locate all equipment within that allotted footprint.

GPS Synchronization: Precise GPS frame synchronization frees the airFiber X from interference for superior co-location capability. GPS enables the concurrency of TX and RX frames so you can co-locate the airFiber X radios and enhance the overall performance of your backhaul links. Clean Power Output: Using digital pre-distortion compensation and multi-IFFT processing, the innovative RF design delivers ultra-clean power output that improves noise immunity and co-location performance. This reduces the potential impact on the RF noise environment and allows for the use of higher-order modulation, such as 256QAM.

Output Power : 30dBm
Operating Modes : Master/Slave
Frequency Range : 2400-2500 MHz
Security : 128-bit AES
Interfaces : (2) RP-SMA Weatherproof (CH0, CH1); (1) SMA Weatherproof (GPS); (1) 10/100/1000 Ethernet Port (Data); (1) 10/100 Ethernet Port (Management)
Temperature Range : -40 to 55° C
PoE In : Yes, 19-29VDC
Operating System : airOS F
Max Power consumption : 17W
Number of chains : 2x2
Polarisation : Dual Linear
Pole Diameter : 30-50mm
Dimensions : 224 x 82 x 48 mm
Typical Range (Based on PtP) : 100km+ (Antenna Dependent)

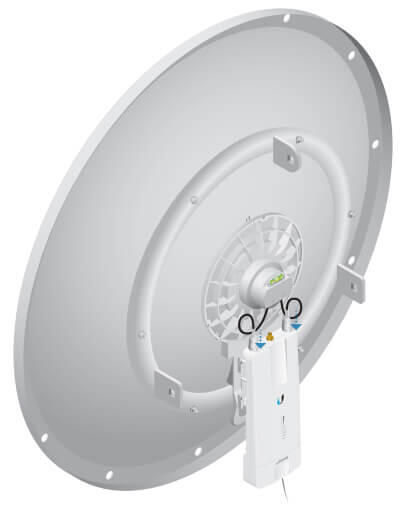

The airFiber AF-2X radio is designed for use with the airFiber X AF-2G24-S45 antenna.
