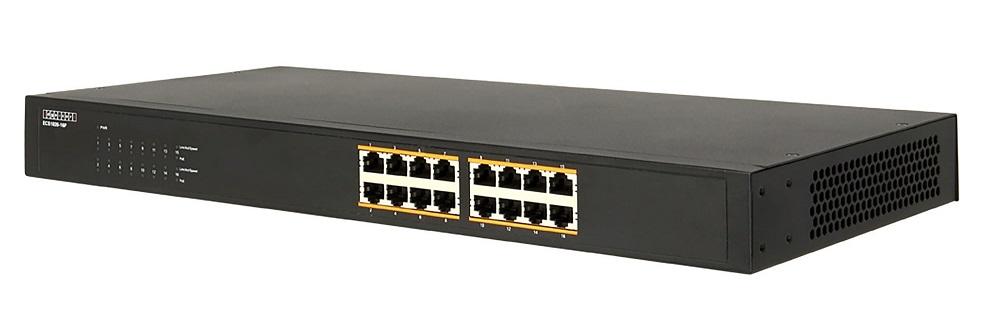

Edgecore ECS1020-16P 16-Port Gigabit 802.3at/af PoE Switch, Unmanaged, 300W Total PoE Power

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 16 Gigabit Ethernet RJ45 PoE Ports
  • Max System Power Consumption :  340W
  • IEEE 802.3af/802.3at PoE
  • PoE Power Budget : 300W
  • Form Factor : Rackmount
  • Rack Space : 19 inch
  • Dimensions (W x D x H) : 440 x 208 x 44mm
  • Weight  : 2.70kg

The ECS1020 Series is Edgecore's new unmanaged switch series. ECS1020-16P is 16-port 10/100/1000-Base-T with 16 PoE ports. These switches provide Gigabit Ethernet connectivity from the network backbone all the way to the edge and to individual desktops. With up to 10 times the speed of 100Mbps networks, these switches reduce transfer times of large data files and boost bandwidth-intensive applications, thereby significantly enhancing overall network performance. Jumbo frame support enables more efficient data transfers with data packets up to 9K bytes in size. The switches are easy to install and an ideal solution for network migration with their 10/100/1000Mbps Auto MDI/MDIX ports. Not only are ports triple-speed, all ports can be either connected to a workstation or another switch, without the need for crossover cables. Supporting non-blocking wire-speed, the switches are built to handle the growing performance needs of bandwidth-hungry applications in today's networks.


Port

RJ45 10/100/1000 BASE-T Ports

16

SFP Uplink Ports

/

PoE Ports

16

Performance

Switching Capacity

32Gpbs

Forwarding Rate

23.8Mpps

Packet Buffer

2Mbit

MAC Address Table

8K

Jumbo Frames

9K

MTBF

TBD

Heat Dissipation

42.6 (kcal/h)

Acoustic Noise

51dB (A)

PoE

IEEE 802.3af/802.3at

Yes

PoE Power Budget

300W

Power Supply

100-240V AC, 50-60Hz

Yes

Max System Power Consumption

340W

Mechanical

Rack Space

19"

Form Factor

Rackmount

Dimensions (W x D x H)

440 x 208 x 44mm (17.4 x 8.19 x 1.73")

Weight

2.70kg

Environmental

Operating Temperature

-0°C ~ 40°C

Storage Temperature

-40°C ~ 70°C

Operating Humidity
(non-condensing)

10% ~ 90%

Storage Humidity
(non-condensing)

10% ~ 90%

WEEE

Yes

RoHS

Yes
