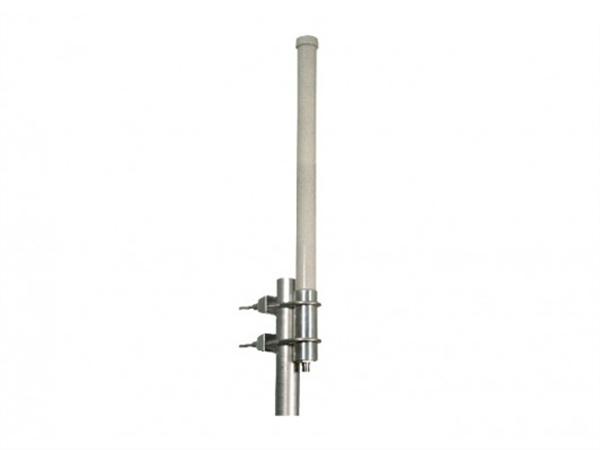

Hyperlink HG2408U-PRO 2.4GHz 8dBi Pro Omni Directional HyperGain

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Frequency Range : 2400-2500MHz
Gain : 8dBi
Polarisation : Vertical
Vertical Beamwidth : 12deg
Horizontal Beamwidth : 360deg
Connector Type : N-Type Female
Dimensions : 790x43mm
Pole Mount Diameter : 32-50mm

The HyperGain HG2408U-PRO is a Professional Grade Omni-Directional antenna that can be used for Commercial installations. The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz ISM band. A collinear Omni-Directional antenna that utilizes a center fed Collinear Dipole array that offers superior performance over the traditional bottom fed collinear designs. A center fed collinear has radiating elements that are more uniformly fed with signals of the proper amplitude and phase. In a bottom fed design, the signals that reach the upper elements have undergone significant amplitude and phase degradation. In most cases, the upper elements of an end fed design contribute little to the antennas final composite gain and pattern. In the HyperGain HG2408U-PRO, an internal copper hard-line provides a low loss path to the antenna's central splitting and phasing component. The brass radiating elements of the HG2408U-PRO utilise an air dielectric for lowest loss and superior radiating efficiency. The design is factory tuned for superior performance. This antenna's construction features a durable fiberglass radome for durability and aesthetics. Its mounting system features twin heavy-duty mounting brackets and U-Bolts for superior strength. The thick brass elements provide long life in hostile environments. Great for use with Ubiquiti and MikroTik High Power long range access points.

  • Center fed collinear array
  • Heavy-duty steel mounting brackets
  • Commercial grade, 8 dBi antenna
  • Solid Brass Elements
  • Integrated N-Female connector
