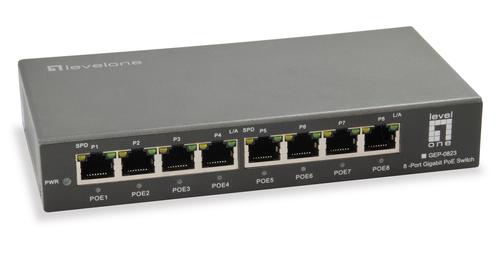

LevelOne GEP-0823 8-Port Gigabit PoE Switch, 802.3at/af PoE, 8 PoE Outputs, 120W
The LevelOne GEP-0823 is a Gigabit Ethernet PoE switch that supplies Power over Ethernet of all 8 ports.
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed data transmission
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 120W, up to 30W per port
- Dimensions (W x D x H mm): 170.50mm × 80.50mm × 30.00mm
- Weight (g): 900
|
Power Consumption |
<10W |
|
Data rate |
10/100/1000Mbps |
|
Transmission Method |
Store-and-Forward |
|
MTBF |
30,000 hours |
|
Power input |
52VDC @ 2.5A 130W |
|
Approval and compliance |
CE,FCC |
|
Max. operating humidity (%) |
90 |
|
Max. operating temperature (°C) |
70 |
|
Max. storage temperature (°C) |
10 |
|
Min. operating humidity (%) |
0 |
|
Min. operating temperature (°C) |
50 |
|
Min. storage humidity (%) |
90 |
|
Backplane (Gbps) |
16G |
|
Indicators |
Power, Active, 10/100/1000M |
|
Jumbo frame (KB) |
9 |
|
MAC address table |
8K |
|
RAM size |
1Mb |
|
Flash memory size |
8 |
|
Mount |
Desk mount |
|
Power output |
802.3af) or 30 watts (IEEE 802.3at) |
|
Power switch |
No |
|
Standards |
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) |
|
QIG language |
DE, EN, ES, FR, IT, PT |
|
Manual languages |
EN |
|
Product weight (kg) |
0,45 |
|
Product breadth (mm) |
86 |
|
Product depth (mm) |
30 |
|
Product height (mm) |
176 |
|
Color |
Black |
|
EAN |
4015867207444 |
|
Model number |
GEP-0823 |
|
Package contents |
PoE Switch |
|
802.3af/at PoE |
8 |
|
PoE supported |
Yes |
|
Grade |
Soho/Business |
|
Manageable |
No |
|
Data Rate |
Gigabit Ethernet |
