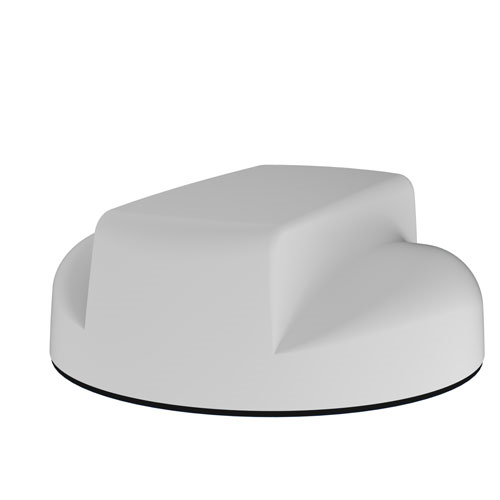

Panorama IN2033-W Vehicle Antenna, 2x cellular 2G/3G/4G, 3x WiFi, 1x GPS

Vehicle Antenna, 2x cellular 2G/3G/4G, 3x WiFi, 1x GPS

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

IN2033-W is a complete kit of consisting of a MiMo Cellular and 3x3 MiMo Wifi panel mount antenna with GPS (Panorama's award winning LGMTM-7-27-24-58 "Great White" Antenna) and a full set of 5m extension cables ready to plug and play with a range of popular LTE routers.

IN2033-B also contains a complete set of 5 extension cables; two 5m low loss double shielded cables terminating in SMA plugs for cellular / LTE, three 5m ultra-low loss double shielded cables terminating in reverse polarity SMA plugs for WiFi and a 6m RG174 cable terminating in an SMA plug for GPS.

  • 2x Cellular / LTE (698-960/1710-2700MHz), 5m CS29 double shielded 5mm cable, SMA Plug
  • 3x Wifi (2.4/5.0GHz), 5m CS32 double shielded ulta low loss 5mm cable, Rev Pol SMA Plug
  • 1x GPS (1575MHz), 6m RG174 cable, SMA Plug

Electrical Data
LTE Frequencies : 698-960/1710-2700MHz
Global Positioning : GPS L1 1575
Wifi Frequencies : 2.4/5.0GHz
Peak Gain (dBi) : 5
LTE MiMo : 2x2
WiFi MiMo : 3x3
Max Input Power (W) : 20
Pattern : Omni-directional
Ground Plane Independent : Yes
Mechanical Data
Available Colours : White
Height (mm) : 62
Diameter (mm) : 176
Operating Temperature : -40 / +80°C
Mounting Data
Mounting Type : Panel Mount
Mounting Method  : 18mm 3/4" Mounting Bush
Approvals Data
IP Rating : IP66


Electrical Data
LTE Frequencies : 698-960/1710-2700MHz
Global Positioning : GPS L1 1575
Wifi Frequencies : 2.4/5.0GHz
Peak Gain (dBi) : 5
LTE MiMo : 2x2
WiFi MiMo : 3x3
Max Input Power (W) : 20
Pattern : Omni-directional
Ground Plane Independent : Yes
Mechanical Data
Available Colours : White
Height (mm) : 62
Diameter (mm) : 176
Operating Temperature : -40 / +80°C
Mounting Data
Mounting Type : Panel Mount
Mounting Method  : 18mm 3/4" Mounting Bush
Approvals Data
IP Rating : IP66
