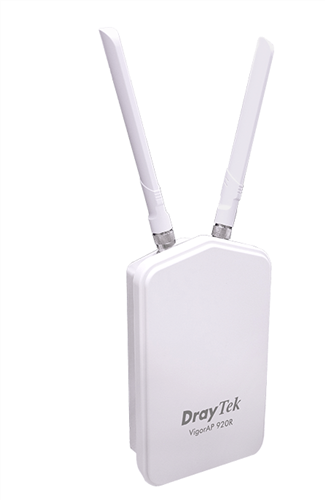

DrayTek DAP920R 802.11ac Wave 2 Dual-Band PoE Outdoor Access Point

Outdoor extreme power 802.11ac wireless AP with high TX power (up to 25dBm), Gigabit LAN

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • IP67 Rated Dust & Water Resistant
  • Concurrent Dual-band 802.11ac Wave 2 with 2×2 MU-MIMO
  • Delivers data rate of up to 867 Mbps in the 5GHz band and 400 Mbps in the 2.4GHz band
  • 1 Gigabit Ethernet LAN port with PoE-PD support
  • 4 SSIDs with unique VLAN setting, Access Control, and Bandwidth Limit policies
  • Features AirTime Fairness and Band Steering for better Wi-Fi user experience
  • Built-in RADIUS server for 802.1x authentication
  • Improve roaming experience by Fast Roaming & AP-assisted Roaming
  • Provide multiple operating modes – AP, Bridge, WDS, and Universal Repeater
  • Support both stand-alone and controller-based setup

The DrayTek VigorAP 920R Series outdoor access point is designed to provide high-performance wireless connections in e rugged environments.
Featuring an IP67 certified enclosure and industrial-grade components, the VigorAP 920R Series is able to withstand heat, wind, rain, and snow. Furthermore, its 802.11ac Wave 2 compliance ensures a fast and reliable connection even in a high-density network.

MU-MIMO 802.11ac Wave 2
The VigorAP 920R Series provides concurrent dual band, allows up to 128 clients on each band, 256 clients totally. It features the latest Wi-Fi technology, 802.11ac Wave 2 in the 5GHz band and 802.11n in the 2.4G band. The support of Multi-User MIMO (MU-MIMO) allows it to deliver high-performance wireless connection even in a crowded network.



Hardware
Interface
o 1 x 10/100/1000M Base-T PoE-capable RJ-45 Port (PoE-PD)
o Factory Reset Button
Built-in Sensor
o Temperature sensor
o Humidity sensor
Power Saving
o IEEE 802.3az Energy Efficient Ethernet compliant
Temperature
o Operating: -40°C ~ 70°C
o Storage: -40°C ~ 85°C
Humidity
o Operating: 5% ~ 95%(non-condensing)
Housing
o IP67 Rated
Dimension (mm)
o 160(W) x 255(H) x 80(D)
Wireless
Standards
o 802.11ac Wave 2
o 802.11n
o 802.11a
o 802.11g
o 802.11b
MIMO
o 2 x 2
WLAN
o MU-MIMO (2 clients)
o Up to 128 clients per radio
o DHCP Server
o DHCP Relay Agent
o MAC Clone
SSID
o Up to 4 SSID per radio
o SSID-based 802.1Q VLAN
Security
o WEP, WEP-802.1x, WPA-PSK, WPA-802.1x, WPA2-PSK, WPA2-802.1x
o Hidden SSID
o Client Isolation
o Access Control per SSID
o WPS
802.1x Authentication
o Internal RADIUS Server: PEAP
o RADIUS Proxy: PEAP, EAP-TLS
Performance Optimization
o Bandwidth Limit Per Station
o Auto-Adjustment Bandwidth Limit when spare bandwidth available
o AirTime Fairness
o WMM
? Load Balancing
o Client Limit per radio
o Traffic Limit per radio*
o Force Overload Disassociation by RSSI Threshold, Idle Time*
(*:controller required)
Roaming
o CFast Roaming (WPA2/802.1x)
o AP-Assisted Roaming (Disassociation by Basic Rate threshold, RSSI threshold, RSSI threshold with stronger signal guaranteed)
Web Portal
o Welcome Message
o URL Redirection
o Button Click Authentication
Mobile Device Management
o Access Control by device type
o Policy per SSID
o Client OS Statistics
Operating Modes
o Access Point
o Universal Repeater
o AP Bridge WDS
o AP Bridge Point-to-Point (2.4 GHz only)
o AP Bridge Point-to-Multipoint (2.4 GHz only)
o Station Infrastructure (2.4 GHz only)
Management
Configuration & Monitoring
o Web Interface: HTTP, HTTPS
o CLI (Telnet)
o SNMP v2, v2c, v3
o TR-069 via VigorACS
o Vigor Router AP Management
o Configuration File Export & Import
F/W upgrade
o HTTP, TR-069 via VigorACS
Diagnostic Tools
o Syslog
o Speed Test
o AP Discovery
o WLAN Statistics
o Station Statistics
o Interference Monitor
