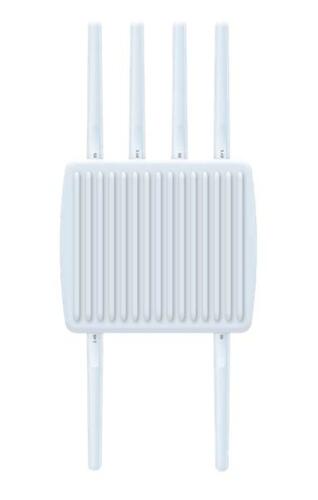

SOPHOS AP100X IP67 Enterprise Outdoor AP, 1.3 Gbps, Dual Radio, 802.11 a/b/g/n/ac A1XZTCHNE

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Support for the latest high-speed wireless standards including 802.11ac and 802.11n
  • Centrally controlled wireless from your UTM
  • No local configuration of access points required
  • Automated channel optimization for maximum performance
  • Complete UTM protection for wireless clients
  • Quick voucher-based guest access customizable with your brand
  • Choose from a range of access points and firewalls with integrated wireless
  • Supports Microsoft Lync and VoIP

Note. Power adapter, PoE injector not included.

Installs fast with automatic setup and configuration
You can set up multiple wireless Access Points (APs) within minutes. They require no local configuration and will simply find the controller, retrieve their IP address via DHCP, and
import the configuration. Devices automatically appear in the UTM interface where you can manually activate them.

Creates reliable networks for all areas
Our access points support a variety of deployment scenarios. They include models for desktop/wall mounting such as the entry-level AP 15 and the enterprise-grade AP 100. The
AP 55C and 100C are both smoke-detector style ceiling-mount and the AP 100X is suitable for outdoor use.

Provides guest Wi-Fi and BYOD access
We give you secure, easy-to-manage guest access out-of-the-box–without extra appliances, licenses or complex configuration. And you can tailor the guest experience to suit your
needs. Set bandwidth limits and content filtering as well as customizing the login page and vouchers to strengthen your company brand.

Secure wireless and integrated UTM protection
To prevent unauthorized access we use the most advanced encryption and authentication standards available, including WPA2-Enterprise in combination with IEEE 802.1X (RADIUS
authentication). And, our APs forward wireless traffic to the UTM, giving wireless clients the same level of security as if they were physically connected to the LAN. You can also choose
to authenticate users based on their credentials from any back end server supported by our UTM for greater flexibility and control.

Maximum throughput : 1.3 Gbps + 450 Mbps
Multiple SSIDs : 8 per radio (16 in total)
LAN interface : 1 x 10/100/1000 Base TX
Supported WLAN Standards : 802.11 a/b/g/n/ac 2.4 and 5 GHz
DFS/TPC
Power over Ethernet (PoE) 802.3at (PoE+)
Number of antennas : 6 external
Number of radios 2:
MIMO capabilities : 3x3:3
Power consumption (max.) : 15W
Dimensions (WxHxD) : 255 (W) x 225 (H) x 90 (D) mm
Weight : 2.5 kg
Mounting options : Wall/pole
