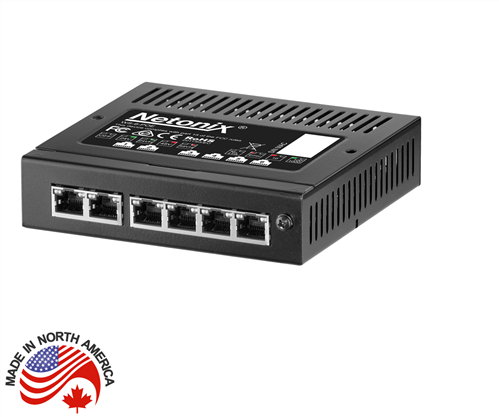

The Netonix Switch model WS-6-MINI is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes.
The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH).
The only switch line on the market that has current sensors on all passive POE ports.
- Manufactured and Assembled in North America
- Standard Desktop / Wall mount
- Dimensions : 127mm x 118mm x 32mm
- Operating temperature : -25 to 55°C (-13 to 131° F)
- Passive PoE current sensors on each port
- Delivers 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
- Current sensors on all passive POE ports
24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) on Ports 03-06
48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) on Ports 03-06
24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) on Port 02
48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) on Port 02
Port 1 will accept passive 48VH (48-53V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz
DO NOT power the WS-6-MINI with a standard passive POE adapter that only supplies 48V power on 2 pairs
If powering the WS-6-MINI with a 48-53V barrel connector power supply port 1 has no POE options, it is just a standard Ethernet port
If powering the WS-6-MINI with a barrel connector power supply be sure to connect the ground screw to Earth Ground for ESD protection.
