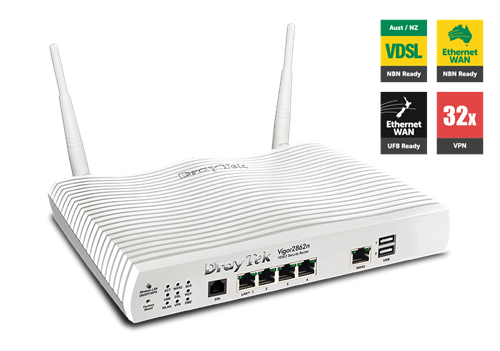

DrayTek DV2862N ADSL / VDSL / UFB WiFi Router with Firewall and VPN

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Vigor 2862 series router/firewall is the 'Ultimate router'. Supporting ADSL or VDSL and UFB it is packed with professional features to increase security, flexibility and functionality, making it ideal as your router for almost any scenario.

  • Supports VDSL2, ADSL, 3G/4G and Ethernet-based Broadband
  • 4-WAN Simultaneous : VDSL/ADSL, Ethernet and dual optional USB 3G/4G
  • DrayDDNS Service Support
  • IPv4/IPv6 Dual-Stack
  • DrayTek Firewall with huge flexibility
  • High Availability (Hardware failover)
  • 4-Port Gigabit Ethernet LAN Switch
  • Up to 8 Private LAN Subnets
  • Larger Subnets - up to 1022 IPs per subnet (LAN1-3)
  • Temperature Monitoring (optional Thermometer)
  • SMS (Text Message) Alert
  • VLANs (Port, 802.1q & Wireless) - Info
  • Content Filtering (by keyword, data type or category)
  • Internal RADIUS Server
  • LDAP Integration for VPN and user access
  • QoS (Layer 2&3, 802.1p & TOS/DCSP)
  • Up to 32 VPN tunnels for LAN-to-LAN or teleworkers
  • VPN Trunk/Backup to remote sites
  • SSL VPN - Tunnel or Proxy (16 users)
  • USB Port for Printer, memory stick or 3G/4G/LTE Modem

Hardware Interfaces
1 x ADSL2/VDSL2, RJ-11 (WAN-1)
1 x 10/100/1000Base-TX, RJ-45 (WAN-2)
4 x 10/100/1000Base-TX LAN, RJ-45, Configurable Physical DMZ on Port4
2 x USB Host 2.0
1 x Factory Reset Button
2 x Detachable Antennas
Wi-Fi Frequency 11b/g/n : 2.412 ~ 2.472GHz
1 x Wireless On/ Off/ WPS Button
Dimension : L241*W165*H44 (mm)

Wireless LAN Features
Single 2.4GHz
Auto channel selection
Multiple SSID
Hidden SSID
Wireless LAN Isolation
Wireless Rate-Control
64/128-bit WEP
WPA/WPA2
MAC Address Access Control (Total 64 entries)
WPS
WDS (Wireless Distribution System)
WMM
Access Point Discovery
802.1x Authentication
Station List/Control
Wireless Wizard
SSID VLAN grouping with LAN port (Port-based VLAN)
