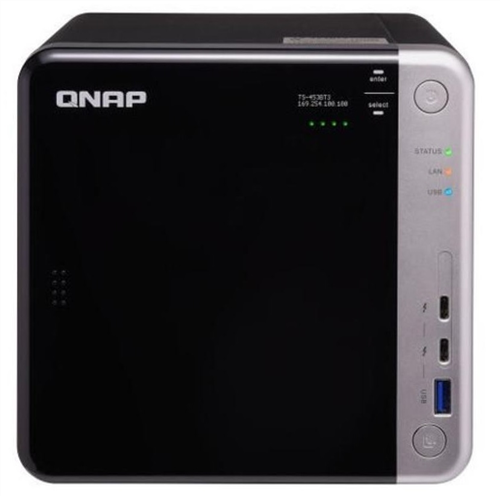

QNAP TS-453BT3-8G 4-Bay NAS with dual Thunderbolt 3 and 10GigE Network Interface

Featuring dual Thunderbolt 3 ports, coupled with M.2 SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

4-Bay 10GbE & Thunderbolt 3 NAS with dual M.2 2280 SATA SSD slots, Intel Celeron Apollo Lake J3455 quad-core 1.5GHz (up to 2.3GHz), 8GB DDR3L SODIMM RAM ( 2x4GB, max 8GB total), SATA 6Gb/s, 2x GbE, 1x 10GbE, 2x Thunderbolt 3, 4K hardware transcoding, 2x 4K HDMI v1.4b, OLED display + touch buttons, USB 3.0, virtualization, Surveillance Station (free 4, max 40 ch.), max 1 UX-800P/UX-500P expansion unit, speaker, 2x 3.5mmMIC In, 1x Line out.

Featuring dual Thunderbolt 3 ports, coupled with M.2 SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.

• High-speed Thunderbolt 3 with SMB protocol, allowing Mac and Windows users to collaborate on media editing.
• Dual M.2 SATA 6 Gb/s SSD allows for setting up caching or storage pool, improving file access efficiency.
• 10GbE connectivity accelerates virtualization applications and file sharing across devices.
• Qtier auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency
• 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI output.
• Qfiling automates file organization, greatly improving work efficiency.

• CPU:
- Processor: Intel Celeron J3455 quad-core 1.5 GHz, burst up to 2.3 GHz
- Architecture: 64-bit
- Graphics: Intel HD Graphics 500
- Encryption Engine: AES-NI
• System Memory: 8 GB RAM (2 x 4 GB DDR3L)
• Maximum Memory: 8 GB (2 x 4 GB)
• Memory Slot: 2 x SODIMM DDR3L
• Drive Bay: 4 x SATA 6 Gbps
• Drive Compatibility:
- 3.5-inch SATA hard disk drives
- 2.5-inch SATA hard disk drives
- 2.5-inch SATA solid state drives
• M.2 SSD Slot: 2 x M.2 2280 SATA 6 Gbp/s SSD
• SSD Cache Acceleration Support:
- Drive bays 1 to 4
- M.2 slots 1 to 2
- Optional: SSD using PCIe expansion slot
• Hot-swappable:
- Yes
- Note: The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
• 10 Gigabit Ethernet Port: 1 x 10GBASE-T RJ-45
• Gigabit Ethernet Port: 2 x RJ45
• PCIe Slot:
- 1 x PCIe 2.0 x2
- Note: Pre-installed with a QM2 expansion card that includes a 10GbE 10GBASE-T port and two M.2 SSD slots).
• Thunderbolt Port: 2 x Thunderbolt 3
• USB Port: 5 x USB 3.0 (Front: 1 x One Touch Copy; Back: 4)
• HDMI Output: 2 x HDMI 1.4b (up to 3840 x 2160 resolution at 30 Hz)
• Audio:
- 2 x 3.5 mm dynamic microphone jacks
- 1 x 3.5 mm line-out jack
- 1 x speaker
- Note: You cannot use the speakers and the line-out jack simultaneously.
• Display Panel: Monochrome OLED display with capacitive sensing Enter and Select buttons
• USB One Touch Copy: Front: USB 3.0 Type-A
• IR sensor: QNAP RM-IR004 remote control (MCE compatible)
• Form Factor: Tower
• Dimensions (H x W x D): 168 x 170 x 226 mm/6.61 x 6.69 x 8.90 inch
• Net Weight: 2.51 kg (5.53 lbs)
• Power Suply Unit: 120W, 100-240V AC, 50/60Hz
• Fan: System: 1 x 12 mm
• Operating Temperature & Relative Humidity: 0 to 40˚C (32 to 104˚F), 5 to 95% non-condensing, wet-bulb 27˚C (80.6˚F)
• Security Slot: Kensington security slot
