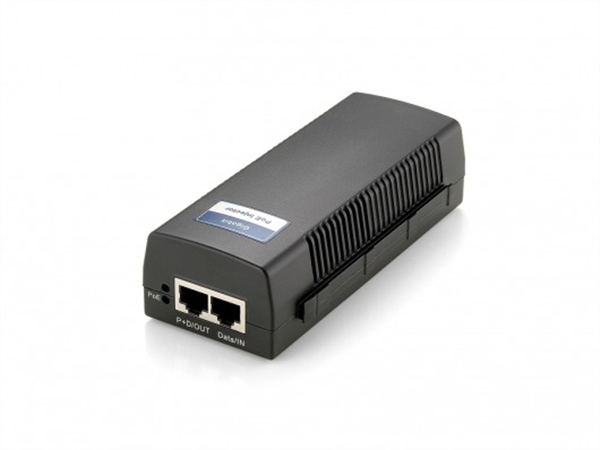

LevelOne POI-3000 Power over Ethernet Injector, PoE+, 30W, 802.3af/at, 10/100/1000Mbps

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  •  IEEE 802.3af/at PoE PSE with 30W power budget
  •  Auto-detection and protection of non-standard PoE devices
  •  10/100/1000Mbps wire speed transmission and reception
  •  6KV surge protection level

The LevelOne POI-3000 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , the POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.

Standards & Protocols:
IEEE 802.3 10Base-T, Ethernet
IEEE 802.3u 100Base-TX, Fast Ethernet
IEEE802.3ab 1000Base-T, Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet (PoE) compliant
Port:
1 x 10/100/1000Base-T RJ-45 Input Port
1 x 10/100/1000Base-T RJ-45 PoE Output Port
Indicator:
Power, PoE
Pin Assignment and Polarity:
1/2 (+), 3/6 (-)
Power Input:
PoE Power Output: DC 56V / 30W
Unit Output Voltage: DC 56V / 0.54A
Power Requirement: 100-240V AC, 50/60Hz, 0.8A
Power Consumption: 30W (Max.)
Data Rate:
10/100/1000Mbps

PoE:
IEEE 802.3af/at standard
Environment
Operating Temperature (°C):
Operating: -20°C ~ 60°C
Storage: 0°C ~ 70°C
Operating Humidity (Non-condensing):
Storage: 5% to 95%
Operating: 5 ~ 95%
Installation:
Wall mount
Physical Specifications
Dimensions (W x D x H mm):
173.5 x 55 x 35.5mm
Weight (g):
275g
Approval and Compliance
EMI/EMS:
EN55024 Class B, FCC, CE, Industry Canada ICES-003 Class B
Safety:
EN60950, EN62368, UL
Environmental Test:
IEC61000 ESD Level 4 (Con 8KV /Air 15KV)
Others:
EN55022 Class B, Hi-pot 3KVac, Insulation Resistance 50MΩ
6KV PoE Surge, EN55032, AS/NZS CISPR32,
