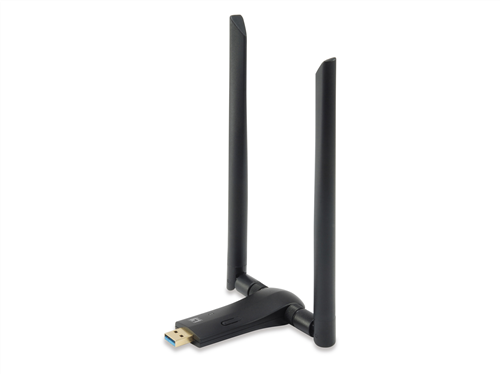

LevelOne WUA-1810E Dual Band Wireless USB Network Adapter, 300Mbps (2.4GHz),867Mbps(5GHz)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  •  Wireless speed up to 867Mbps (5GHz) / 300Mbps (2.4GHz)
  •  Dual band technology reduces interference for reliable connections
  •  Compatible with IEEE 802.11a/b/g/n/ac wireless standards
  •  Simple wireless connectivity and security with WPS push button
  •  AP/Client operation modes to suite different wireless applications
  •  5dBi detachable antennas
  •  Comes with a USB cradle to allow flexible placement for optimal wireless signal

The LevelOne WUA-1810 is a dual-band wireless USB network adapter, compliant with the latest 802.11ac wireless technology standard. This adapter can simultaneously search for both 2.4 GHz and 5 GHz band networks, producing a transmission rate of up to 300Mbps on the 2.4 GHz frequency band, and 867Mbps on the 5 GHz band, with less radio interference and a faster, more stable wireless transmission. Compatible with mainstream operating systems (Windows, Linux and Mac), the WUA-1810 is very suitable for HD home entertainment networking, small business users, and sophisticated, high-demand wireless networking where speed and reliability are of optimum importance.

Package Contents
 WUA-1810A
 Quick Installation Guide
 Antenna (x2)
 USB 3.0 Extension Stand
 Resource CD (User Manual, QIG, Driver)

Standards & Protocols:
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Connectors and Cabling:
USB Cable
Optical Receive Sensitivity:
11n:-68dBm@130M;-68dBm@108M
11g:-69dBm@54M
11b:-85dBm@11M
11ac:-59dBm@867M
Button/Knob:
WPS button
Power Input:
5V/500mA
Wireless
Receive Sensitivity(dBm):
11n:-68dBm@130M;-68dBm@108M
11g:-69dBm@54M
11b:-85dBm@11M
11ac:-59dBm@867M
Channel:
1-11 CH (WUA-1810A)
1-13 CH (WUA-1810E)
EIRP(dBm):
18dbi
Antenna:
2 * 5dBi detachable antenna
Frequency Band (GHz):
2.4GHz & 5.0GHz
Modulation:
DSSS, OFDM
Features
General:
300Mbps@2.4GHz
867Mbps@5.8GHz
Performance
Data Transfer Rate:
IEEE 802.11b:1,2,5.5,11Mbps
IEEE 802.11g:6,9,12,18,24,36,48,54Mbps
IEEE 802.11n:Up to 300Mbps
IEEE 802.11ac:UP to 867Mbps
Operating Distance:
100m
Environment
Temperature (°C):
0~40°C
Humidity (Non-condensing):
10%~90%
Physical Specifications
Dimensions (W x D x H mm):
64×25.5×8.4 mm
Weight (g):
100g
