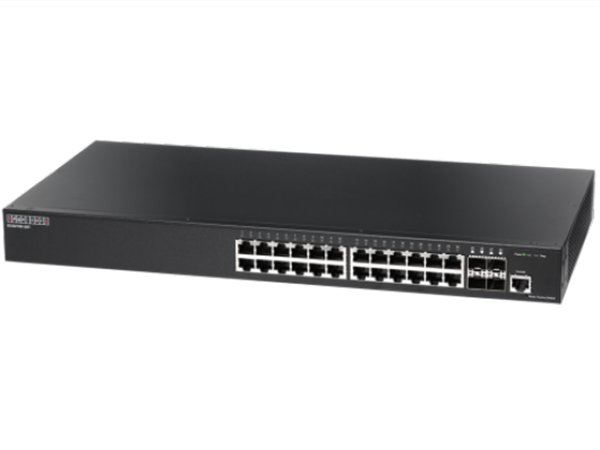

Edgecore ECS2100-28T 24-Port 10/100/1000 Mbps (Gigabit) Managed Switch with 4 Gigabit SFP slots

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

24-Port 10/100/1000 Mbps (Gigabit) Managed Switch with 4 Gigabit SFP slots.

28x Networking Ports in Total, 24x Gigabit RJ45 Ethernet, 4x SFP, Managed, Layer 2

The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large.

ECS2100-28P is a Web Smart Pro Switch, it supports 24 x GE ports + 4 GE SFP ports with1 RJ45 Console port and Fanless design.

· Performance and Scalability with 56Gbps switching capacity
· Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1Q VLAN-segmented and IEEE 802.3ad Link Aggregation Control Protocol (LACP).
· Comprehensive QoS - Traffic is prioritized according to 802.1p or DSCP, giving optimal performance to real-time applications such as voice and video.
· Multi Management- supports CLI, Web, SNMP v1/v2c/v3, and Telnet management to provide multiple network management access.
· Enhanced Security with Port security limits for IEEE 802.1X port-based or MAC-based access including DHCP snooping, Access Control Lists (ACLs), Dynamic VLAN, IP Source Guard and Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) encrypt Telnet and web access to the switch.
· Smart Network Deployment - Automatic Voice VLAN for quick deployment of VoIP, and automatic Video VLAN to help deploy your IP-based surveilliance system.
· PoE Support - ECS2100-28PP provide up to 30 Watts of power to attached devices, such as VoIP phones, wireless access points, and surveillance cameras, all over existing Ethernet cables. It can extend its power budget up to 740 Watts by connecting an external power bank (PS3000 and EPS460W) to deliver 30 Watts on 24 ports.


  • Ports: 24
  • Switch Type: Fixed Port
  • Routing/Switching: Layer 2
  • Features: Fanless IPv6 Management
  • Predominant Port Type: Gigabit Copper, Gigabit Fiber
  • Fanless design for silent operation

ECS2100 series management features


  • Flow control
  • Broadcast/ Multicast/ Unknown unicast control
  • Auto MDI/MDIX

Spanning Tree Protocol

  • IEEE 802.1D /.1w/.1s
  • STP fast forwarding/Auto Edge
  • BPDU Guard/BPDU filtering
  • Root Guard
  • BPDU transparent
  • Loopback detection


  • 4K VLAN
  • Port-based VLAN
  • 802.1Q VLAN
  • 802.1v Protocol based VLAN
  • MAC-based  VLAN
  • Traffic Segmentation
  • Voice VLAN
  • Auto VLAN Assignment

Port Trunk

  • Static trunk
  • IEEE 802.3ad LACP


  • 8 Hardware queues
  • 802.1p CoS
  • CoS based on IP precedence, DSCP, TCP/UDP Port, ACL
  • WRR/Strict or Hybrid
  • DiffServ
  • Ingress traffic policing
  • Marking/remarking
  • Auto QoS profile assignment
  • Rate limiting

Multicast control

  • IGMP snooping v1/v2/v3
  • IGMP Querier
  • IGMP snooping filtering/throttling
  • IGMP snooping proxy
  • Immediate leave
  • MLD snooping v1/v2


  • MAC filtering
  • Port security (dynamic & static)
  • Port security intrusion action
  • 802.1x Port-based authentication
  • 802.1x MAC-based authentication
  • Guest VLAN
  • MAC filtering
  • MAC authentication
  • DHCP snooping/snooping 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • Access Control List
  • Denial of Service Protection
  • AAA (Authentication, Authorization, Accounting)
  • SSH v1/v2
  • Management access filter (WEB/SNMP/Telnet)
  • Static Routing *
  • mDNS *
  • QinQ *
  • G.8032 *
  • IP Clustering *

* (v1.2.2.0 + support )


  • Cisco like CLI
  • Telnet/WEB/SNMP v1/v2/v3
  • RMON(1,2,3,9)
  • FTP/TFTP/HTTP download
  • DHCP dynamic provision (option 66&67)
  • DHCP client/option 82 relay
  • Time zone for SNTP
  • DNS client/proxy
  • Delay reload
  • Event/error log, system log
  • Auto upgrade
  • Port monitor
  • LLDP (802.1ab)
  • Cable diagnostic


  • IPv4/IPv6 Dual Protocol Stack
  • IPv6 Address types: Unicast
  • IPv6 Neighbor Discovery
  • SNMP over IPv6
  • HTTP over IPv6
  • Remote IPv6 ping
  • IPv6 Management
  • IPv6 ACL
  • IPv6 QoS
