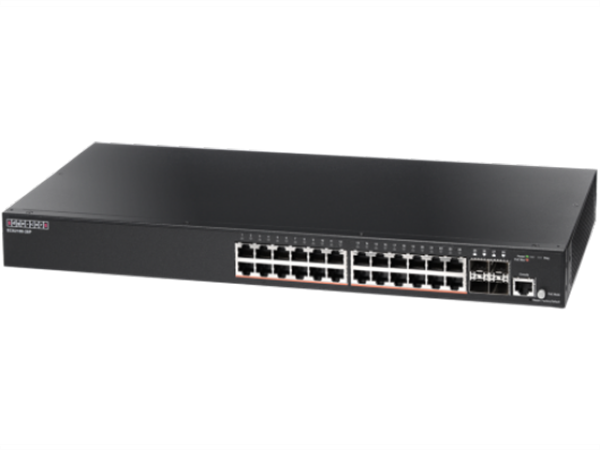

Edgecore ECS2100-28P 24-Port Gigabit Managed PoE Switch, 4 SFP, 802.3af / 802.3at PoE, 192W

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

24-Port 10/100/1000 Mbps (Gigabit) Managed PoE Switch with 4 Gigabit SFP slots, 802.3af and 802.3at PoE, Power budget 192W.

28x Networking Portsin Total, 24x Gigabit RJ45 Ethernet, 4x SFP, Managed, Rackmount, Layer 2

The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large.

ECS2100-28P is a Web Smart Pro Switch, it supports 24 x GE PoE+ ports and 4 GE SFP ports . The PoE Budget is max.200W. ECS2100-28P provide up to 30 Watts of power to attached devices, such as VoIP phones, wireless access points, and surveillance cameras, all over existing Ethernet cables.

Features:
· Performance and Scalability with 56Gbps switching capacity
· Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1Q VLAN-segmented and IEEE 802.3ad Link Aggregation Control Protocol (LACP)..
· Comprehensive QoS - Traffic is prioritized according to 802.1p or DSCP, giving optimal performance to real-time applications such as voice and video.
· Multi Management- supports CLI, Web, SNMP v1/v2c/v3, and Telnet management to provide multiple network management access.
· Enhanced Security with Port security limits for IEEE 802.1X port-based or MAC-based access including DHCP snooping, Access Control Lists (ACLs), Dynamic VLAN, IP Source Guard and Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) encrypt Telnet and web access to the switch.
· Smart Network Deployment - Automatic Voice VLAN for quick deployment of VoIP, and automatic Video VLAN to help deploy your IP-based surveilliance system.
· PoE Support - provide up to 30 Watts of power to attached devices, such as VoIP phones, wireless access points, and surveillance cameras, all over existing Ethernet cables.

Specifications
· Ports: 24
· Switch Type: Fixed Port
· Routing/Switching: Layer 2
· Features: PoE, IPv6 Management
· Predominant Port Type: Gigabit Copper, Gigabit Fiber

ECS2100 series management features

Switching

  • Flow control
  • Broadcast/ Multicast/ Unknown unicast control
  • Auto MDI/MDIX

Spanning Tree Protocol

  • IEEE 802.1D /.1w/.1s
  • STP fast forwarding/Auto Edge
  • BPDU Guard/BPDU filtering
  • Root Guard
  • BPDU transparent
  • Loopback detection

VLAN

  • 4K VLAN
  • Port-based VLAN
  • 802.1Q VLAN
  • 802.1v Protocol based VLAN
  • MAC-based  VLAN
  • Traffic Segmentation
  • Voice VLAN
  • Auto VLAN Assignment

Port Trunk

  • Static trunk
  • IEEE 802.3ad LACP

QoS

  • 8 Hardware queues
  • 802.1p CoS
  • CoS based on IP precedence, DSCP, TCP/UDP Port, ACL
  • WRR/Strict or Hybrid
  • DiffServ
  • Ingress traffic policing
  • Marking/remarking
  • Auto QoS profile assignment
  • Rate limiting

Multicast control

  • IGMP snooping v1/v2/v3
  • IGMP Querier
  • IGMP snooping filtering/throttling
  • IGMP snooping proxy
  • Immediate leave
  • MLD snooping v1/v2

Security

  • MAC filtering
  • Port security (dynamic & static)
  • Port security intrusion action
  • 802.1x Port-based authentication
  • 802.1x MAC-based authentication
  • Guest VLAN
  • MAC filtering
  • MAC authentication
  • DHCP snooping/snooping 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • Access Control List
  • Denial of Service Protection
  • AAA (Authentication, Authorization, Accounting)
  • SSH v1/v2
  • SSL/HTTPS
  • Management access filter (WEB/SNMP/Telnet)
  • Static Routing *
  • mDNS *
  • QinQ *
  • G.8032 *
  • IP Clustering *

* (v1.2.2.0 + support )

Management

  • Cisco like CLI
  • Telnet/WEB/SNMP v1/v2/v3
  • RMON(1,2,3,9)
  • FTP/TFTP/HTTP download
  • DHCP dynamic provision (option 66&67)
  • DHCP client/option 82 relay
  • Time zone for SNTP
  • DNS client/proxy
  • Delay reload
  • Event/error log, system log
  • Auto upgrade
  • Port monitor
  • LLDP (802.1ab)
  • Cable diagnostic

IPv6

  • IPv4/IPv6 Dual Protocol Stack
  • IPv6 Address types: Unicast
  • IPv6 Neighbor Discovery
  • SNMP over IPv6
  • HTTP over IPv6
  • Remote IPv6 ping
  • IPv6 Management
  • IPv6 ACL
  • IPv6 QoS
