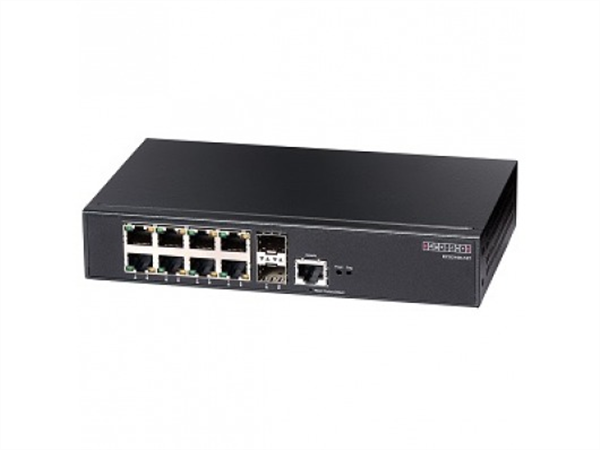

Edgecore ECS2100-10T 8-Port 10/100/1000 Mbps (Gigabit) Managed Switch with 2 Gigabit SFP slots

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

8-Port 10/100/1000 Mbps (Gigabit) Managed Switch with 2 Gigabit SFP slots.

10x Networking Ports in Total, 8x Gigabit RJ45 Ethernet, 2x SFP, Managed, Layer 2

The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large.


Features:
· Dashboard (CPU & Memory port utilization) and (Event & LLDP information )
· Multiple management (Console , Web, SNMP ,CLI)
· Dual firmware /configure memory size.
· IEEE 802.3az EEE & IPv4/IPv6 management
· IEEE 802.3af/at & PoE Timer
· Web-smart with L2 managed switch ability (static routing & console port)
· Comprehensive QoS and Enhance security

Specifications
· Ports: 8
· Switch Type: Fixed Port
· Routing/Switching: Layer 2
· Features: Fanless, IPv6 Management
· Predominant Port Type: Gigabit Copper, Gigabit Fiber

ECS2100 series management features



Switching

  • Flow control
  • Broadcast/ Multicast/ Unknown unicast control
  • Auto MDI/MDIX

Spanning Tree Protocol

  • IEEE 802.1D /.1w/.1s
  • STP fast forwarding/Auto Edge
  • BPDU Guard/BPDU filtering
  • Root Guard
  • BPDU transparent
  • Loopback detection

VLAN

  • 4K VLAN
  • Port-based VLAN
  • 802.1Q VLAN
  • 802.1v Protocol based VLAN
  • MAC-based  VLAN
  • Traffic Segmentation
  • Voice VLAN
  • Auto VLAN Assignment

Port Trunk

  • Static trunk
  • IEEE 802.3ad LACP

QoS

  • 8 Hardware queues
  • 802.1p CoS
  • CoS based on IP precedence, DSCP, TCP/UDP Port, ACL
  • WRR/Strict or Hybrid
  • DiffServ
  • Ingress traffic policing
  • Marking/remarking
  • Auto QoS profile assignment
  • Rate limiting

Multicast control

  • IGMP snooping v1/v2/v3
  • IGMP Querier
  • IGMP snooping filtering/throttling
  • IGMP snooping proxy
  • Immediate leave
  • MLD snooping v1/v2

Security

  • MAC filtering
  • Port security (dynamic & static)
  • Port security intrusion action
  • 802.1x Port-based authentication
  • 802.1x MAC-based authentication
  • Guest VLAN
  • MAC filtering
  • MAC authentication
  • DHCP snooping/snooping 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • Access Control List
  • Denial of Service Protection
  • AAA (Authentication, Authorization, Accounting)
  • SSH v1/v2
  • SSL/HTTPS
  • Management access filter (WEB/SNMP/Telnet)
  • Static Routing *
  • mDNS *
  • QinQ *
  • G.8032 *
  • IP Clustering *

* (v1.2.2.0 + support )

Management

  • Cisco like CLI
  • Telnet/WEB/SNMP v1/v2/v3
  • RMON(1,2,3,9)
  • FTP/TFTP/HTTP download
  • DHCP dynamic provision (option 66&67)
  • DHCP client/option 82 relay
  • Time zone for SNTP
  • DNS client/proxy
  • Delay reload
  • Event/error log, system log
  • Auto upgrade
  • Port monitor
  • LLDP (802.1ab)
  • Cable diagnostic

IPv6

  • IPv4/IPv6 Dual Protocol Stack
  • IPv6 Address types: Unicast
  • IPv6 Neighbor Discovery
  • SNMP over IPv6
  • HTTP over IPv6
  • Remote IPv6 ping
  • IPv6 Management
  • IPv6 ACL
  • IPv6 QoS
