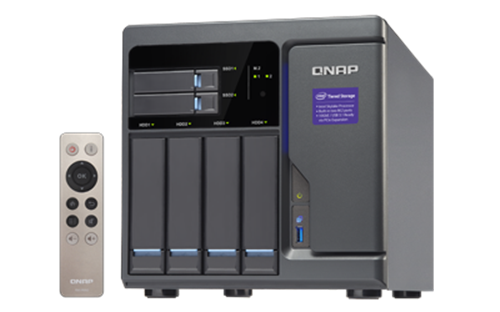

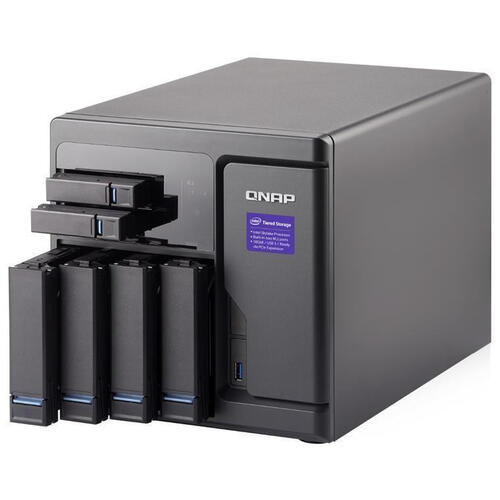

QNAP TVS-682-I3-8G 6-Bay SATA 6Gb/s NAS, Core i3-6100 3.7 GHz CPU, 8GB RAM, 4x GigE, 10Gb

  • High-performance NAS: tiered storage, application-based partitioning and network traffic distribution
  • 4x 3.5” hard drive bays and 2x 2.5” hard drive bays

Purchase NAS and hard disk drives together and we'll fit them before we deliver to you.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The TVS-682 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-682 also supports smooth 4K 60 fps video transfer and display, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-682 presents an ideal choice for a complete business-ready storage solution.

  • Built-in M.2 SATA 6Gb/s slots & 2.5" SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
  • Scalable design with economical QNAP storage expansion enclosures
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-682's storage capacity
  • Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
  • 6th Generation Intel® processors, extraordinary performance

The TVS-682 is powered by high-performance 6th Generation Intel® multi-core processors with options including Pentium® and Core™ i3, increasing system performance by 20% - 30% compared with previous generations. It greatly enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K video playback, and serving large numbers of simultaneous connections.

Advanced hardware for greater efficiency

High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.

M.2 SATA 6Gb/s SSD & 2.5" SSD cache
The TVS-682 provides 2 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-682 combines M.2 SSD, 2.5" SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.

Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution
The advanced hardware design of TVS-682 can facilitate optimized storage deployment based on different usage scenarios.

Tiered Storage
QNAP's Qtier Technology empowers the TVS-682 with Auto Tiering that helps continuously optimize storage efficiency across PCIe NVMe SSD, M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-682 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-682 an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and cost efficiency from Auto Tiering with the TVS-682.



Hardware Specification
CPU : Intel® Core™ i3-7100 dual-core 3.9 GHz processor
CPU Architecture : 64-bit x86
Graphic Processors : Intel® HD Graphics 630
Floating Point Unit : Yes
Encryption Engine :  (AES-NI)
Hardware-accelerated Transcoding :  Yes
System Memory :  8 GB UDIMM DDR4 (2 x 4GB)
Maximum Memory :  64 GB (4 x 16GB)
Memory Slot :  4 x DDR4 Long-DIMM
Flash Memory : 512MB (DOM for dual OS)
Drive Bay : 4 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility : 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable :  Yes
M.2 SSD Slot :  2 x M.2 2242/2260/2280/22110 SATA 6Gb/s slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support :  SSD slot 1, 2
Gigabit Ethernet Port (RJ45) : 4
Jumbo Frame : Yes
PCIe Slot :  2
Slot 1: PCIe Gen 3 x16
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 1 port :  5
HDMI Output :  3
Audio Input : 2 x 6.3mm dynamic microphone input jacks
Audio Output : 2 x built-in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.
Form Factor : Tower
LED Indicators : System status, 2.5” SSD, M.2 SSD, 3.5” HDD
Buttons :  Power, Reset, USB Auto Copy
Dimensions (HxWxD) :  231.9 × 224.9 × 319.8 mm
Weight (Net) :  7.7 kg
Operating temperature :  0 - 40 °C (32°F - 104°F)
Relative Humidity :  5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit :  Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
Power Consumption: HDD Sleep Mode : 29.15 W
Power Consumption: Operating Mode, Typical : 46.65 W
Fan : System fan: 1 x 80mm
CPU fan: 1 x 90mm
Sound Level : 20.1 db(A)
System Warning : Buzzer
Kensington Security Slot :  Yes
Max. Number of Concurrent Connections (CIFS) : 1500
