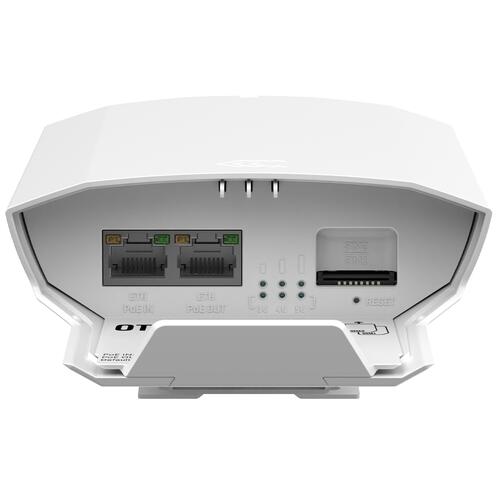

Teltonika OTD144 LTE Cat 4 Outdoor Cellular Router with Wi-Fi

The Teltonika OTD144 Outdoor Wi-Fi Router is a rugged 4G LTE Cat 4 industrial router with integrated Wi-Fi, dual SIM failover and PoE-in/PoE-out, designed to provide reliable Internet and wireless connectivity in outdoor and exposed environments. Featuring an IP55 weather-resistant enclosure, integrated cellular and Wi-Fi antennas, two Ethernet ports and comprehensive RutOS networking and security features, the OTD144 provides an all-in-one solution for outdoor Wi-Fi hotspots, IP surveillance, remote monitoring, smart city infrastructure, industrial yards, IoT applications and other locations where installing conventional indoor networking equipment is impractical.

Outdoor 4G Router with Integrated Wi-Fi

The Teltonika OTD144 combines cellular routing and wireless access in a single outdoor-ready device.

Rather than installing an indoor 4G router together with a separate outdoor access point and antennas, the OTD144 provides:

• 4G LTE Cat 4 connectivity
• Integrated 2.4GHz Wi-Fi 4
• Dual SIM support with automatic failover
• Two Ethernet interfaces
• PoE-in
• PoE-out
• Integrated cellular antennas
• Integrated Wi-Fi antennas
• IP55 weather-resistant housing
• Integrated wall and pole mounting
• Teltonika RutOS
• Teltonika RMS compatibility

This integrated design can significantly simplify the installation of outdoor Internet and Wi-Fi connectivity.

4G LTE Cat 4 Mobile Connectivity

The OTD144 features an integrated 4G LTE Cat 4 cellular modem, providing mobile broadband connectivity in locations where fixed-line Internet is unavailable, impractical or unreliable.

LTE Cat 4 supports theoretical cellular data rates of up to:

• 150Mbps download
• 50Mbps upload

The router also supports 3G and 2G mobile technologies where supported by the local carrier and applicable hardware variant.

Cellular connectivity makes the OTD144 particularly useful for remote and outdoor locations where running fibre, copper broadband or other fixed infrastructure would be difficult or expensive.

Potential applications include:

• Construction sites
• Remote facilities
• Car parks
• Outdoor surveillance
• Agricultural sites
• Industrial yards
• Public Wi-Fi
• Smart city infrastructure
• Remote monitoring
• Temporary sites
• Outdoor IoT deployments

Actual cellular performance depends on the mobile network, signal strength, frequency bands, network congestion and carrier configuration.

Dual SIM with Automatic Failover

The OTD144 provides two SIM slots with automatic SIM switching, helping improve cellular availability in remote and unattended installations.

Administrators can configure the router to switch between SIM cards according to conditions including:

• Weak cellular signal
• Mobile data limits
• SMS limits
• Roaming
• Loss of network
• Network rejection
• Data connection failure
• SIM idle protection

Dual SIM functionality allows SIM cards from different mobile providers to be installed, providing an alternative cellular service if the preferred connection becomes unavailable.

For business-critical outdoor applications, this provides considerably greater resilience than relying on a single mobile network.

Integrated 2.4GHz Wi-Fi

Unlike the OTD140, the OTD144 incorporates integrated Wi-Fi, allowing the router to provide wireless connectivity directly to nearby devices.

The built-in 2.4GHz Wi-Fi 4 (802.11b/g/n) radio makes the OTD144 suitable for applications such as:

• Outdoor Wi-Fi hotspots
• Wireless IoT devices
• Sensors
• Tablets and handheld devices
• Industrial equipment
• Maintenance personnel
• Remote monitoring equipment
• Smart city devices
• Factory yard connectivity

Integrated omnidirectional Wi-Fi antennas eliminate the need to install separate external antennas for many applications.

Wi-Fi Hotspot and Captive Portal

RutOS provides advanced hotspot functionality, allowing the OTD144 to be used for managed public or private wireless access.

Hotspot capabilities can be useful in locations such as:

• Public spaces
• Holiday parks
• Outdoor events
• Construction sites
• Industrial facilities
• Transportation environments
• Commercial premises
• Smart city installations

Captive portal functionality can be used to control and manage access while providing reporting and diagnostic capabilities.

This makes the OTD144 more than simply a cellular router with basic Wi-Fi – it can provide a complete managed outdoor wireless access solution.

PoE-In for Simple Single-Cable Installation

The OTD144 supports Power over Ethernet input, allowing electrical power and Ethernet data to be delivered to the router through a single network cable.

This can significantly simplify outdoor installation because a separate electrical outlet does not need to be installed next to the router.

PoE is particularly useful when mounting the OTD144:

• On poles
• On exterior walls
• Around industrial yards
• In car parks
• At remote monitoring locations
• Around building perimeters
• At surveillance sites
• In other difficult-to-access locations

Reducing the number of cables required can lower installation complexity and make it easier to position the router where cellular and Wi-Fi coverage is most effective.

PoE-Out for Powering an Additional Device

The OTD144 also provides PoE output, allowing the router to supply power to a compatible nearby Ethernet device.

This is particularly useful for equipment such as:

• IP surveillance cameras
• IoT gateways
• Sensors
• Monitoring equipment
• Other compatible low-power Ethernet devices

For example, a single cable can provide power and network connectivity to the OTD144, while its second Ethernet interface supplies connectivity and power to an IP camera.

This can substantially simplify outdoor surveillance and monitoring installations.

PoE-out provides up to 15W, subject to the capabilities and available power of the upstream power supply.

IP55 Weather-Resistant Outdoor Enclosure

The Teltonika OTD144 is specifically designed for outdoor deployment.

Its rugged enclosure carries an IP55 ingress protection rating, providing protection against dust and water ingress appropriate for exposed outdoor environments.

The router is designed to operate across an extended temperature range of -40°C to +70°C, making it suitable for demanding installations where conventional indoor routers cannot be used.

Potential installation environments include:

• Outdoor walls
• Poles and masts
• Industrial sites
• Factory yards
• Construction sites
• Agricultural facilities
• Car parks
• Transportation infrastructure
• Utility installations
• Remote telecommunications sites

Integrated Cellular and Wi-Fi Antennas

The OTD144 incorporates its antennas directly into the enclosure, helping simplify installation and eliminating the need to separately mount and cable conventional external antennas.

Integrated antenna configuration includes:

• 2 × internal mobile antennas
• 2 × internal 2.4GHz Wi-Fi antennas

The mobile antennas provide up to approximately 4dBi gain, while the integrated Wi-Fi antennas provide up to approximately 4.9dBi gain.

This integrated design makes the OTD144 particularly convenient for straightforward outdoor installations where an all-in-one solution is preferred.

Integrated Wall and Pole Mounting

The OTD144 enclosure incorporates a mounting bracket designed to simplify field installation.

The router can be installed on a suitable:

• Wall
• Pole
• Mast
• Other compatible outdoor structure

This eliminates the need for a separate enclosure and reduces the amount of additional mounting hardware required for many installations.

Combined with integrated antennas and PoE power, the mounting system helps make the OTD144 quick and straightforward to deploy.

Two Ethernet Interfaces

The Teltonika OTD144 provides two RJ45 Ethernet ports, giving installers wired connectivity for network infrastructure and nearby Ethernet devices.

The interfaces can be used for applications such as:

• Wired LAN connectivity
• WAN connectivity
• IP cameras
• Industrial equipment
• IoT devices
• Network switches
• Monitoring equipment

One Ethernet interface provides PoE input while the second supports PoE output, enabling particularly neat single-cable outdoor installations.

Advanced RutOS Operating System

The OTD144 runs Teltonika RutOS, the OpenWrt-based operating system used across Teltonika's professional networking portfolio.

RutOS provides significantly more networking functionality than a conventional basic 4G router.

Features include:

• Static routing
• Dynamic routing
• Firewall
• VLAN support
• DHCP
• DDNS
• Network monitoring
• Traffic management
• Automatic failover
• Mobile connection management
• Wi-Fi hotspot
• Captive portal
• SMS utilities
• IPv4 and IPv6
• Remote administration

Advanced routing capabilities include support for technologies such as BGP and OSPF, allowing the OTD144 to integrate into more sophisticated network architectures.

Secure VPN Connectivity

RutOS provides extensive VPN support, allowing the OTD144 to establish secure communications across public cellular networks.

VPN capabilities can be used to securely connect:

• Remote sites to head office
• Outdoor infrastructure to a data centre
• Remote IoT devices to cloud platforms
• Surveillance systems to monitoring centres
• Industrial infrastructure to central management systems

This makes the OTD144 suitable for applications where secure remote connectivity is required rather than simply providing public Internet access.

Teltonika RMS Remote Management

The OTD144 is fully compatible with the Teltonika Remote Management System (RMS).

RMS provides centralised monitoring and management of Teltonika network equipment, which can be particularly valuable when routers are installed outdoors or at geographically remote locations.

Depending on the RMS services and licences being used, administrators can remotely:

• Monitor router status
• Check cellular signal information
• Review network connectivity
• Change configurations
• Perform firmware updates
• Receive alerts
• Troubleshoot problems
• Access devices behind the router
• Manage multiple Teltonika devices from a central platform

Remote management can significantly reduce the need to physically visit outdoor and remote installations for routine configuration and troubleshooting.

Ideal for Outdoor Surveillance

The combination of 4G connectivity, Ethernet, PoE-in and PoE-out makes the OTD144 particularly well suited to outdoor IP surveillance applications.

A typical installation could use PoE to power the OTD144 while the router's PoE-out interface powers a compatible IP camera.

The camera can then communicate through the OTD144's 4G connection, providing a compact solution for locations where fixed network infrastructure is unavailable.

Potential surveillance applications include:

• Construction sites
• Remote gates
• Car parks
• Agricultural facilities
• Temporary surveillance
• Utility infrastructure
• Remote compounds
• Building perimeters

Ideal Applications for the Teltonika OTD144

The OTD144 is particularly well suited to:

• Outdoor Wi-Fi hotspots
• Remote Internet connectivity
• IP surveillance
• Smart city infrastructure
• Construction sites
• Industrial yards
• Factory outdoor areas
• Agriculture
• Remote monitoring
• IoT deployments
• Car parks
• Utilities
• Transportation infrastructure
• Temporary networks
• Public Wi-Fi
• Outdoor sensors and telemetry

Technical Specifications

Specification	Details
Model	Teltonika OTD144
Product Type	Outdoor 4G LTE Wi-Fi Router
Cellular Technology	4G LTE Cat 4
Maximum LTE Download	Up to 150Mbps
Maximum LTE Upload	Up to 50Mbps
Cellular Fallback	3G and 2G, order code/network dependent
SIM Slots	2
SIM Failover	Yes, automatic SIM switching
Wi-Fi	Wi-Fi 4
Wi-Fi Frequency	2.4GHz
Wi-Fi Standards	IEEE 802.11b/g/n
Wi-Fi Antennas	2 × integrated omnidirectional
Cellular Antennas	2 × integrated omnidirectional
Ethernet Ports	2 × RJ45
PoE Input	Yes
PoE Input Standard	IEEE 802.3af/at
PoE Output	Yes
Maximum PoE Output	Up to 15W, PSU dependent
Operating System	Teltonika RutOS
Wi-Fi Hotspot	Yes
Captive Portal	Yes
Firewall	Yes
VPN Support	Yes
Dual SIM Auto-Failover	Yes
Dynamic Routing	Supported
BGP	Supported
OSPF	Supported
IPv6	Supported
Remote Management	Teltonika RMS compatible
Enclosure	Outdoor weather-resistant plastic housing
Ingress Protection	IP55
Mounting	Integrated wall/pole mounting bracket
Input Voltage	42.5–57V DC via PoE
Reverse Polarity Protection	Yes
Surge/Transient Protection	Yes
Dimensions	Approx. 110 × 49.3 × 235mm
Operating Temperature	-40°C to +70°C
Installation	Outdoor or indoor

Why Choose the Teltonika OTD144?

The Teltonika OTD144 provides an elegant solution to a common outdoor networking challenge: how to provide reliable cellular Internet, Wi-Fi and wired connectivity without installing multiple devices, external antennas and separate power infrastructure.

Its integrated LTE Cat 4 modem and 2.4GHz Wi-Fi combine cellular routing and wireless access within a single IP55 outdoor enclosure, while dual SIM automatic failover helps maintain connectivity if the primary mobile service becomes unavailable.

PoE-in simplifies installation by allowing data and power to reach the router over a single Ethernet cable. The additional PoE-out interface can then power a compatible nearby device such as an IP camera or sensor, making the OTD144 particularly attractive for outdoor surveillance and remote monitoring installations.

Integrated cellular and Wi-Fi antennas, an integrated mounting bracket and a -40°C to +70°C operating range further simplify deployment in exposed environments.

Combined with the extensive routing, firewall, VPN, hotspot and remote management capabilities of Teltonika RutOS and RMS, the OTD144 provides a versatile outdoor connectivity platform for businesses, integrators, IoT deployments and industrial networks.

For applications requiring outdoor 4G Internet, integrated Wi-Fi, dual SIM resilience and convenient PoE installation in a single rugged device, the Teltonika OTD144 provides a practical and cost-effective solution.
