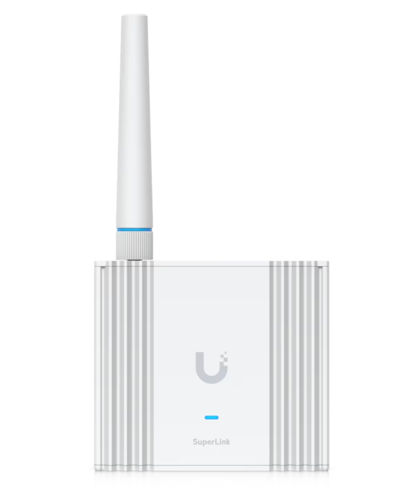

Ubiquiti USL-GATEWAY UniFi SuperLink Wireless Gateway, proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors
The Ubiquiti UniFi SuperLink is a proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
Featuring the all-new groundbreaking wireless protocol, SuperLink. With ultra-low latency, impressive scalability, and multi-kilometre range, it sets a new standard for secure, reliable IoT connectivity.
Note. this is the US Model with Operating Frequency: 915.6–927.6 MHz.
- 96 SuperLink clients supported with up to 2 km link range (line of sight)
- 7 UP-Sense (BLE) devices supported with improved long-range connectivity
- Powered using PoE or USB Type-C
- Wall and DIN Rail mount options for flexible deployment in residential or commercial environments
|
Manufacturer's Code |
USL-Gateway-US |
|
Dimensions |
With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1"), With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5"), With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
|
Mounting |
Wall and DIN rail mount |
|
UniFi Application Suite |
Protect |
|
Networking Interface |
(1) 10/100 MbE RJ45 port |
|
Connectivity |
Bluetooth® 5.2, SuperLink (Proprietary) |
|
Operating Frequency |
Bluetooth: 2400–2480 MHz, SuperLink US: 915.6–927.6 MHz |
|
Antenna Gain |
Bluetooth: 3 dBi, SuperLink: 2 dBi |
|
Max. TX Power |
Bluetooth: 10 dBm, SuperLink: 27 dBm |
|
Max. Range |
Bluetooth: Up to 100 m (328 ft), SuperLink: 2 km (1.2 mi) with clear line of sight |
|
Max. Client Count |
Bluetooth: 7, SuperLink: 96 |
|
Max. Power Consumption |
3.4W |
|
Power Method |
PoE, USB Type-C, 5V, 1A (Optional) |
|
Weight |
179 g (6.3 oz) |
|
Enclosure Material |
Polycarbonate, aluminium alloy |
|
Mount Material |
Polycarbonate |
|
Buttons |
(1) Factory reset |
|
LEDs |
(1) Status: B/W |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
|
Application Requirements |
Web Application: UniFi Protect, Mobile App: UniFi Protect iOS™ and Android™ |
|
