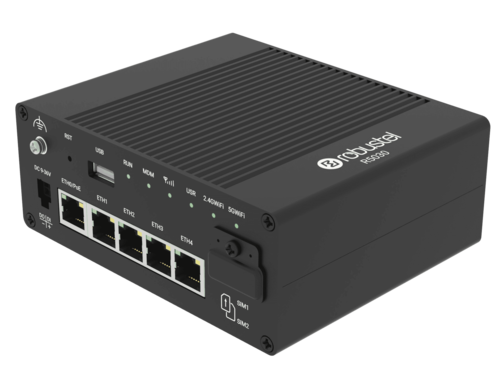

Robustel R5030-A-5G-A25GL Industrial Dual-SIM 5G Router, 5x LAN, Wi-Fi 6, GNSS, PoE or DC Powered

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: Log in for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time

In stock email will be sent.

Instock notification already exists.

Order SKU: Supplier Code:

The Robustel R5030 is an industrial 5G router built for high-performance connectivity in vehicles and at the edge.

It supports global 5G/4G/3G bands and 3GPP Release 15/16, pairing cellular backhaul with dual-band Wi-Fi 6 in AP or Client mode for dense user environments.

Captive portal and dedicated GNSS suit fleet and passenger Wi-Fi deployments, while Ethernet or Wi-Fi can serve as primary access with automatic failover to 5G/4G for continuity.

Security and interoperability are enterprise-grade with IPsec, DMVPN and more, and operations scale through RCMS for centralized monitoring, configuration, and updates. A compact metal enclosure with DIN-rail or wall mounting simplifies installation in cabinets and vehicles.

The result is fast, resilient 5G with modern Wi-Fi that’s straightforward to deploy and manage across transit fleets, venues, and branch sites.

DUAL-SIM CELLULAR
5G, 4G/LTE, 3G & 2G with Dual-SIM Card support for failover

Wi-Fi 6
The latest Wi-Fi Technology offering more users per AP

INTERFACES
1x WAN + 4x LAN or 5x LAN,
1x DI/DO

OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK

RCMS ON-BOARD
RCMS Cloud device management enabled

Example R5030 Use Cases

Passenger Wi-Fi

Provide 5G backhaul and high-density Wi-Fi 6 with integrated captive portal for authentication and usage policies; 5×LAN connects cameras/controllers; manage configuration via RCMS.

Retail & Branch Connectivity

Deliver primary or backup 5G with Wi-Fi 6. Connect POS, NVRs, and controllers with 5×LAN ports; monitor and update router fleets centrally through RCMS Device Management.

IP Cameras / CCTV

Connect multiple IP cameras and NVRs via 5×LAN to a single router, reducing cabinet hardware and cost; 5G backhaul preserves monitoring when fixed links fail.

This Device is RCMS Ready

RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.

Mounting Options:
Desktop Mount

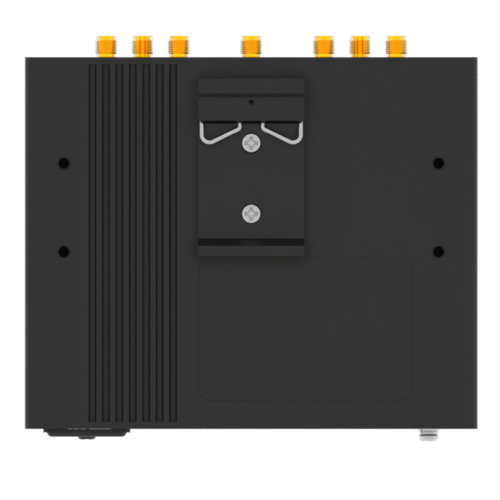

DIN Rail Mount

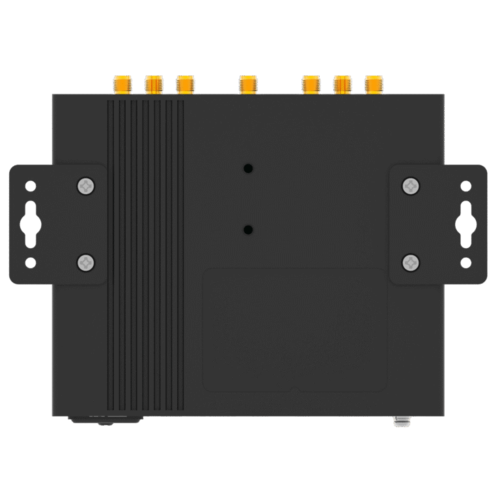

Wall Mount

Bands:
5G NR NSA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79
5G NR SA: n1/2/3/5/7/8/12/20/25/28/38/40/41/48*/66/71/77/78/79
4G LTE FDD: B1/2/3/4/5/7/8/12(B17)/13/14/18/19/20/25/26/28/29/30/32/66/71
4G LTE TDD: B34/38/39/40/41/42/43/48
4G LTE LAA: B46
3G: B1/2/3/4/5/6/8/19

In the box:
1 x 5G Router ( B015400004 )
4 x Cellular Antenna
2 x Wi-Fi Antenna
1 x GNSS Antenna
1 x Power Adapter
1 x Wall Mounting Kit

System Architecture

Operating System	RobustOS
CPU	Dual-core ARM Cortex A53, 1.0 GHz
RAM	512MB
Flash	8 GB eMMC

Cellular

Supported Technologies	5G, 4G/LTE, 3G, 2G

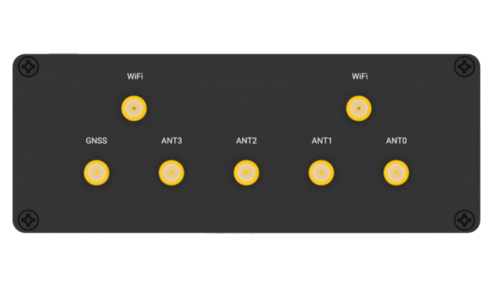

Antennas	4 (ANT0 + ANT1 + ANT2 + ANT3)
Connector	SMA-K
SIM	2 x Mini SIM (2FF)

Ethernet

Ethernet Ports	5 x 10/100/1000 Mbps, 1 x WAN + 4 x LAN, or 5 x LAN optional
Magnet Isolation Protection	1 KV

PoE In

PoE Ports	ETH0
PoE Standards	IEEE802.3at – 42.5 – 57 V DC

Digital Input/Output

DI/DO Ports	1 x DI + 1 x DO, wet contact
Connector	4-pin Micro-Fit socket (shared with the power supply)
Absolute Maximum VDC	+30 V DC (DI), +30 V DC (DO)
Absolute Maximum ADC	100 mA (DO)
Signal Definition	DI, DO, – (Power Minus is also referred to as DI/DO Minus)

Wi-Fi

Wi-Fi Antennas	2 (Wi-Fi 1 + Wi-Fi 2)
Connector	RP-SMA-K
Standards	802.11 a/b/g/n/ac/ax, 2 x 2 MIMO, supporting AP and Client modes
Frequency Bands	2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.15 ~ 5.825 GHz (5 GHz ISM band)
Security	WPA, WPA2, WEP, WPA3
Encryption	AES, TKIP

GNSS/GPS

GNSS Antennas	1
Connector	SMA-K
GNSS Frequency	GPS: L1, L5 QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1

Other Interfaces

Reset Button	1 x RST

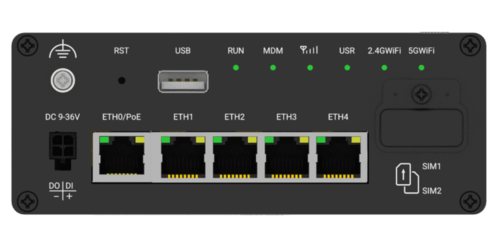

LED Indicators	1 x RUN, 1 x MDM, 1 x RSSI, 1 x USR, 1 x 2.4G Wi-Fi, 1 x 5G Wi-Fi
Watchdog	External
USB	1 x USB 2.0 (host), Type A, 5 V, 500 mA

Power Supply & Consumption

PSU Connector	4-pin Micro-Fit socket
Input Voltage	12/24 V DC, 9 ~ 36 V DC Reverse polarity protection, surge protection
Power Consumption	Idle: 6 W@24 V Max: 16.5 W @24 V
Recommended Power Supply	24 V DC/1.5 A power adapter

Physical Characteristics

Ingress Protection	IP30
Housing & Weight	Metal, 581 g
Dimensions	49 x 105 x 128 mm
Installation Options	Desktop, Wall Mount and 35mm DIN Rail
Operating Temperature	-20 – +70 °C
Storage Temperature	-40 – +85 °C
Relative Humidity	5 – 95% RH (non-condensing)

Software Features

Network Protocols	PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc.
VPN Tunnels	IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN
Firewalls	DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote Management	RCMS, Web, CLI, SMS
Serial Port Protocols	Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
SIM Management	Smart Roaming
Optional Apps	L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc.

Software Development Kit (SDK)

Supported Programming Languages	C, C++
Flash available for SDK	6.5GB
RAM available for SDK	128MB

Regulatory and Type Approvals

Environmental	RoHS 2.0
Testing	IEC 60068-2-6 (Sinusoidal Vibration) IEC 60068-2-27 (Mechanical Shock) IEC 60068-2-64 (Random Vibration)
EMI	EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B
EMS	EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 ISO 7637-2 (Surge) Level 3
