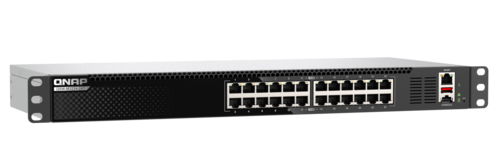

QNAP QSW-M3224-24T 24-port 10GbE Multi-gigabit L3 Lite Managed Switch

the QNAP QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications.

24-port 10GbE network
Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.

L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.

Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.

Secure network management
Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.

Low-latency AVoIP user experience
Supports IGMP Snooping with VLAN and QoS priority management for high-resolution audiovisual experiences. This makes it ideal for applications such as video walls and large outdoor display walls.

Cloud-centralized control for hassle-free management
No additional hardware or software is required. Use the AMIZcloud management platform to monitor multiple switches across various locations, enabling remote IT troubleshooting and reducing operational costs.

Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.

Scalability
When scaling your network, more network switches are required for more end devices. Deploying a L3 Lite switch helps realize granular control over large-scale segmented networks.

High-performance
High-performance network transmission is essential for critical business applications and services. A L3 Lite switch effectively satisfies the high-performance network demands in AI, multimedia, and virtualization applications.

Security
Having trouble with the complicated connections in the medium to large-scale networks? A L3 Lite switch provides an IP routing table to both boost connection security and simplify security management.

Enterprise IP routing, network high availability and high-performance demands

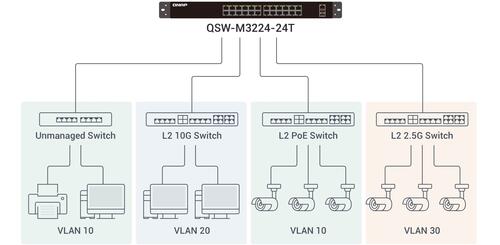

IP routing
Forwards packets through IP addresses to enable communication between devices in different network segments, or efficiently connect between different segments and subnets to achieve more complicated network segments based on functions.

MC-LAG network redundancy
Combines multiple connections between switches into a single, logical link. This logical link provides high availability and redundancy for client devices as it can continue to function even if one or more of the physical links fail.

LACP
Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure.

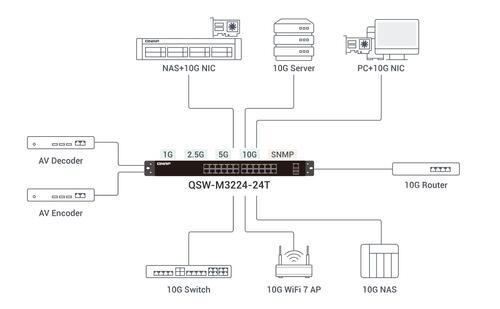

24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology.

Connect 10GbE NAS, servers, and computers
Compliant with 10GBASE-T and Multi-Gigabit NBASE-T™ to connect to 10G/5G/2.5G/1G NAS, servers, and computers.

Uncompromising AV-over-IP experience
The AV-over-IP Wizard guides you through configuring IGMP Snooping and VLAN to route AV traffic for applications like video walls and large outdoor display walls. Combined with QoS priority management, it delivers low-latency and high-resolution AVoIP experiences.

Manage all networked devices
Supports SNMP for centrally and securely manage all networked devices in your network environment, such as NAS, routers, network switches, workstations, modems, IP phones, and IP cameras.

Cloud-based control platform for efficient management of multiple switches
No need to purchase additional hardware or software. With the AMIZcloud management platform, you can easily monitor switches distributed across various locations and instantly access device information.

Optimize network performance with bandwidth and packet control
The QSW-M3224-24T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators.

PTP
Precision Time Protocol (PTP) complies with ITU-T G.8273.3 Class A, providing precise time synchronization for network devices. QSW-M3224-24T accurately forwards PTP packets while correcting internal delays, with maximum time error usually limited to 100 ns.

LACP
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.

QoS
Quality of Service (QoS) provides detailed traffic control (Queue Scheduling) and priority management (Strict Policy), improving network performance and ensuring the real-time delivery of critical traffic.

IGMP Snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions
The QSW-M3224-24T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL
Access Control List (ACL) enhances security by filtering incoming and outgoing packet data through custom rules. ACL Mirroring is also supported to allow for copying traffic that matches specific ACL rules and forwarding it to designated monitoring or analysis devices.

LLDP
Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.

RSTP
Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.

Flow Control
Balances traffic between a sender and a receiver to avoid network congestion.

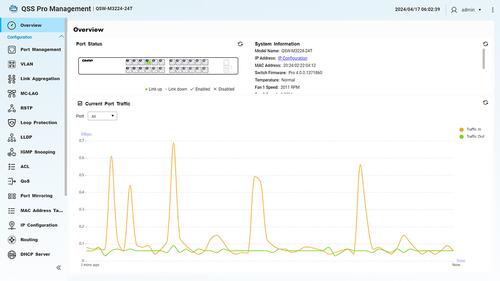

QSS Pro: Powerful and Smart
The QSW-M3224-24T adopts QNAP Switch System Pro (QSS Pro), which features an easy-to-use Web GUI with Layer 3 Lite and Layer 2 management and value-added functions to simplify network set up and management.

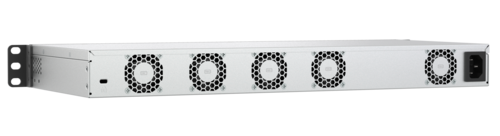

Dependable performance with effective heat dissipation

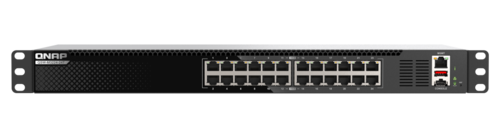

With a compact metal body, the QSW-M3224-24T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.

Easily implement air-gap backups
Secure business data with QNAP’s Airgap+ backup solution. Use QNAP NAS with the QSW-M3224-24T to smoothly run backup tasks with air-gapped network isolation –effectively protecting your backup data from cyberattacks and data breaches.
