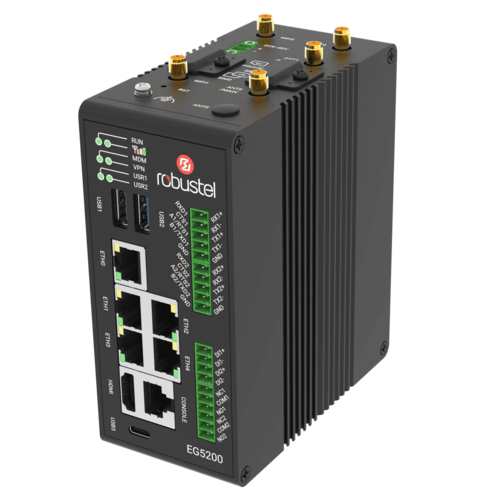

Robustel EG5200-A5AAZ-4L-A06GL Industrial edge computing gateway with Dual-SIM 4G LTE, 5x Gigabit LAN, Serial, Console, HDMI, Relay

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: Log in for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time

In stock email will be sent.

Instock notification already exists.

Order SKU: Supplier Code:

Summary

The Robustel EG5200 is an industrial edge computing gateway that combines secure cellular backhaul with on-box processing in a cabinet-ready form factor. Built on RobustOS Pro (Debian 11), it supports Docker containers and Debian packages so you can run protocol bridges, buffering, and analytics at the edge alongside your equipment.

Five Gigabit Ethernet ports, HDMI for local display, and USB 3.0/Type-C expandability simplify integration of cameras, sensors, and peripherals; optional Wi-Fi 6 (AP/Client) adds high-density wireless where needed.

Connectivity is resilient with dual-SIM 5G/4G/3G/2G and Ethernet WAN plus link-backup, while an enterprise VPN suite (IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN) protects data in transit. Serial (RS-232/422/485) and dry-contact DI/relay outputs support common industrial workflows. Fleet operations scale through RCMS for monitoring, configuration, and updates.

The result: a powerful, open platform for reliable connectivity and practical edge workloads across factories, smart-grid sites, and roadside cabinets.

BANDS

4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28
4G LTE TDD: B38/39/40/41

DUAL-SIM CELLULAR

4G/LTE, 3G & 2G with Dual-SIM Card support for failover

MODULAR FUNCTION

Optional modular support for Bluetooth, GNSS & Wi-Fi

INTERFACES

4x WAN + 1x LAN or 5x LAN, RS-232, RS-422, RS-485, Relay

OPERATING SYSTEM

RobustOS Pro – Full Linux Debian Operating System

RCMS ON-BOARD

RCMS Cloud device management enabled

Example EG5200 Use Cases

Multi-Camera (Edge Video)

Process video on-site for instant alerts while sending only results to your system. Connect multiple cameras to one gateway; optional local review via HDMI; resilient 5G/LTE backhaul.

Energy & Utilities Site Hub

Bring meters and protection devices into one secure gateway. Standardise and buffer data locally, then deliver it reliably to your control room over encrypted links.

Smart City IoT Hub

Connect lighting, environmental, parking, waste, flood and safety sensors across districts. Run edge filtering and buffering, then forward secure event data to your city platform.

This Device is RCMS Ready

RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.

Product Mounting Options

Desktop Mount

DIN Rail Mount

Wall Mount

Package Contents

1 x EG5200 Gateway
1 x DIN Rail Mounting Kit
2 x Cellular Antenna
1 x GNSS Antenna
1 x Power Adapter

System Architecture

Operating System	RobustOS Pro
CPU	Quad core Cortex-A53, 1.6 GHz
RAM	4 GB DDR4
Flash	32 GB eMMC
NPU	2.3 TOPS

Cellular

Supported Technologies	4G/LTE, 3G, 2G
Antennas	LTE: 2
Connector	SMA-K
SIM	2 x Mini SIM (2FF)

Ethernet

Ethernet Ports	5 x RJ45, 10/100/1000 Mbps
Magnet Isolation Protection	1 KV

Serial Port

Serial Ports	2 x RS-232/RS-422/RS-485 (software configurable)
Connector	2 x 5-pin 3.5 mm terminal block
ESD Protection	8 KV air, 4 KV contact
Baud Rate	300 bps to 115200 bps
Signal Definition	RS-232: TXD, RXD, GND, CTS, RTS RS-422: RX+, RX-, TX+, TX-, GND RS-485: Data+ (A), Data- (B), GND

Console Port

Console Port	1 x RS-232
Connector	RJ45
Baud Rate	115200 bps
Signal Definition	TXD, RXD, GND

Digital Input

DI Ports	2 x DI, wet contact
Connector	4-pin 3.5 mm terminal block
Absolute Maximum VDC	+30 V DC
Absolute Maximum ADC	100 mA
Signal Definition	DI1+, DI1-, DI2+, DI2-

Relay Output

Relay Ports	2 x Relay Output
Connector	6-pin 3.5 mm terminal block
Absolute Maximum VDC	+48 V DC
Absolute Maximum ADC	100 mA
Signal Definition	NC1, NO1, COM1, NC2, NO2, COM2

Other Interfaces

Reset Button	1 x RST
LED Indicators	1 x RUN, 1 x Signal, 1 x USR, 1 x MDM
Watchdog	External
USB	2 x USB 3.0 (HOST), Type A, 5 V, 900 mA 1 x USB 2.0 (OTG), Type C
HDMI	1 x HDMI 2.0
SD-Card	1x MicroSD

Power Supply & Consumption

PSU Connector	2-pin 3.5 mm terminal block with lock
Input Voltage	12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection
Power Consumption	Idle: 6.5 W@12 V Max: 15 W@12 V
Recommended Power Supply	24 V DC/2 A power adapter

Physical Characteristics

Ingress Protection	IP30
Housing & Weight	Metal, 622 g
Dimensions	58 x 111 x 128 mm
Installation Options	Desktop, Wall Mount and 35mm DIN Rail
Operating Temperature	-30 – +70 °C
Storage Temperature	-40 – +85 °C
Relative Humidity	5 – 95% RH (non-condensing)

Software Features

Network Protocols	PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc.
VPN Tunnels	IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN
Firewalls	DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote Management	RCMS, Web, CLI, SMS
Serial Port Protocols	Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
SIM Management	Smart Roaming
Optional Apps	L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc.

Software Development Kit (SDK)

Supported Programming Languages	C, C++, Python, Java, Node.js, etc. (for users to develop own applications)
Flash available for SDK	30GB
RAM available for SDK	2.5GB
