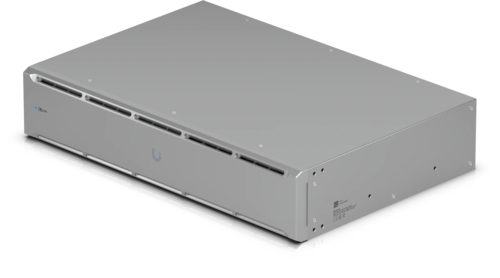

Ubiquiti UPS-2U UniFi Managed 1500VA 2U Line interactive UPS with Surge protection
Ubiquiti UniFi 1500VA 2U Line interactive UPS with Surge protection, UniFi managed rackmount uninterruptible power supply with 8 outlets and field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices.
Like all UniFi products, these UPS appliances integrate seamlessly into the UniFi Network application for simple adoption and monitoring. Built-in NUT server capability extending safe shutdown support to third-party servers as well.
- Seamlessly Integrate to UniFi Network
- NUT Support for 3rd Party Devices
|
Management |
Ethernet |
|
Networking Interface |

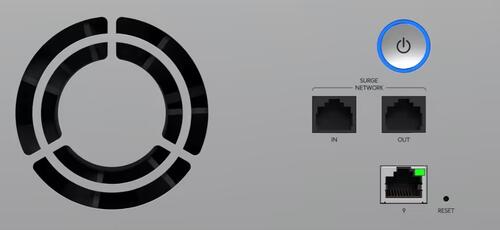

(1) 100/10M port for network connection, (2) GbE ports for surge in/out |
|
Power |

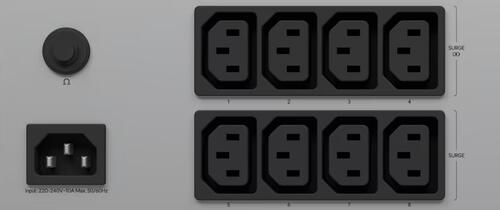

(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord, (4) Battery backup/surge protection: C13, (4) Surge protection: C13 |
|
Capacity |
1,500VA/1,000W |
|
Type |
Line interactive |
|
Input Voltage Range |
170–280V AC |
|
Power Method |
(1) TN system, 220–240V AC, 10A Max., 50/60 Hz |
|
Nominal Input Voltage |
230V AC |
|
Output Voltage |
220–240V AC |
|
Nominal Output Voltage |
230V AC |
|
Frequency Range |
AC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 50 Hz ±1 Hz |
|
AC Voltage Regulation |
±10% (Battery mode) |
|
Transfer Time |
6 ms typical; 10 ms max. (Battery mode) |
|
Wave Form |
Simulated sine wave (Battery mode) |
|
Battery Type |
(2) Lead Acid 12V, 9Ah |
|
Runtime |
Full load: 2.3 min, Half load: 8 min |
|
Battery Charging Time |
6-8 hours recovery to 90% capacity |
|
Overload at On-Line Mode |
110% 5 min go to fault, 120% go to fault immediately |
|
Overload at Battery Mode |
110% shutdown in 5 sec, 120% shutdown immediately |
|
Short Circuit Protection at On-Line Mode |
Breaker, 250V AC, 10A |
|
Output Short-Circuit Current |
Ipeak 444.0A, Irms 223.1A |
|
Buttons |
(1) Power, (1) Factory reset |
|
LEDs Status |
Off: device not turned on, Flashing white: initializing / factory default, Steady white: waiting for adoption, Steady blue: device adoption and working, Flashing blue: battery mode, Alternating white/blue: firmware upgrading, Rapid flashing blue: locate, Steady red: warning, Flashing red: low battery |
|
Operating Altitude |
3,000 m (1.9 mi) |
|
Operating Environment |
Pollution Degree 2 |
|
Ambient Storage Temperature |
-20 to 50° C (-4 to 122° F) |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Ambient Operating Humidity |
0 to 95% noncondensing |
|
Dimensions |
442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4") |
|
Weight |
13.7 kg (30.2 lb) |
|
Enclosure Material |
Galvanized steel |
|
Form Factor |
Rack mount (2U) |
|
Weatherproofing |
IP20 |
|
Certifications |
CE, IEC 62040-1 |
|
