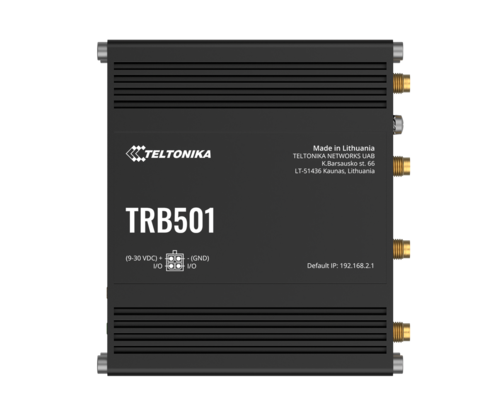

Teltonika TRB501 Industrial 2.5 Gigabit Ethernet to 4x4 MIMO 5G IoT Cellular Gateway with I/O
TRB501 is the successor to the TRB500, offering improved performance with a 2.5 Gbps Ethernet port (vs 1 Gbps), 3GPP Release 16 support for better 5G, and 512 MB RAM (vs 256 MB).
Experience the power of next-gen connectivity with the TRB501 Industrial 5G Gateway. Designed for demanding environments, it delivers blazing-fast, low-latency 5G for a new era of automation and efficiency. Built to push data faster with a 2.5 Gbps Ethernet and coupled with 5G carrier aggregation (3GPP Release 16), this compact device is ideal for solutions like POS systems, security installations, and IIoT applications.
- NEXT-GEN 5G with Lower latency, better spectrum use, and 5G carrier aggregation
- Ultra-high wired data speeds of up to 2.5 Gbps Ethernet
- Compact 5G in limited spaces without compromising performance
- IIoT ready with Modbus, DNP3 and DLMS for SCADA, smart grid, and telemetry
|
Mobile module
|
5G Sub-6Ghz SA/NSA: 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G: 42 Mbps DL, 5.76Mbps UL
|
|
3GPP Release
|
Release 16
|
|
CPU
|
Qualcomm, Single-Core, 1.5 Ghz, ARM Cortex-A7
|
|
RAM
|
512 MB
|
|
FLASH storage
|
512 MB
|
|
Bands
|
5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71; 4G (LTE-TDD): B38, B40, B41, B42, B43; 3G: B1, B3, B5, B8
|
|
Status
|
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
|
|
SMS
|
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
|
|
USSD
|
Supports sending and reading Unstructured Supplementary Service Data messages
|
|
Block/Allow
|
list Operator block/allow list (by country or separate operators)
|
|
Band management
|
Band lock, Used band status display
|
|
SIM PIN code management
|
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
|
|
APN
|
Auto APN
|
|
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN
|
|
Passthrough
|
Router assigns its mobile WAN IP address to another device on LAN
|
|
Framed routing
|
Framed routing: support an IP network behind 5G UE
|
|
Ethernet
|
1 x ETH port 10/100/1000/2500Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
|
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP(S), FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
|
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
|
|
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
|
|
Firewall
|
Port forward, traffic rules, custom rules, TTL target customisation
|
|
Firewall status page
|
View all your Firewall statistics, rules, and rule counters
|
|
Port management
|
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
|
|
Network topology
|
Visual representation of your network, showing which devices are connected to which other devices
|
|
DHCP
|
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
|
|
Configurable I/O
|
2 x Configurable digital Inputs/Outputs on 4-pin power connector. Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high. Digital Output, Open collector output, max 30 V, 300 mA.
|
|
Events
|
Email, RMS, SMS
|
|
I/O juggler
|
Allows to set certain I/O conditions to initiate event
|
|
Power Connector
|
4-pin industrial DC power socket
|
|
Input voltage range
|
9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max
|
|
PoE (passive)
|
Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
|
|
Power consumption
|
Idle: < 1.5 W, Max: < 5 W
|
|
Status LEDs
|
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
|
|
SIM
|
1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
|
|
Power
|
1 x 4-pin power connector
|
|
Antennas
|
4 x SMA for Mobile
|
|
USB
|
1 x Virtual network interface via micro USB
|
|
Reset
|
Reboot/User default reset/Factory reset button
|
|
Casing material
|
Anodized aluminum housing and panels
|
|
Dimensions
|
100 x 30 x 93.4 mm
|
|
Weight
|
241 g
|
|
Mounting options
|
DIN rail, wall mount, flat surface (all require additional kit)
|
|
Operating temperature
|
-40 °C to 75 °C
|
|
Operating humidity
|
10% to 90% non-condensing
|
|
Ingress Protection Rating
|
IP30
|
|
