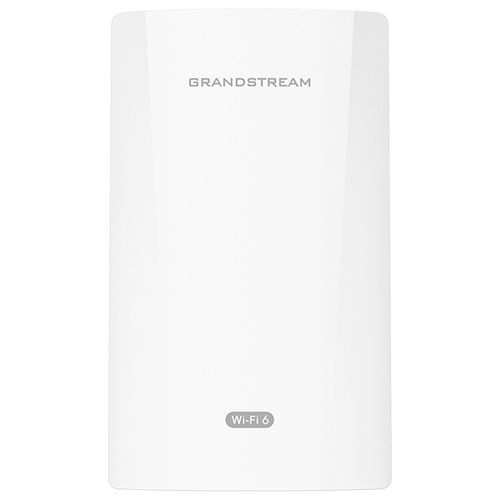

Grandstream GWN7302 Outdoor 802.11ax Point-to-Point/Multi-point Bridge, Access Point
Grandstream GWN7302 PTP/PTMP 802.11ax Radio. The GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2x2:2 MIMO and a sophisticated antenna design with TDMA technology to improve spectrum utilization efficiency, reduce interference, and enhance network stability. It supports PtP and PtMP modes to meet different scenarios.
It offers IP66-level weatherproof capability to ensure equipment stability. One key pairing can quickly synchronize and connect devices, combined with the signal strength LEDs to guide the antenna alignment, simplifying the installation and use of the device.
To ensure easy installation and management, the GWN7302 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7302 is also supported by the GWN App, which can be configured by connecting Wi-Fi broadcasted by the device itself when it is not convenient to access the LAN and the GDMS cloud platform offers remote management.
It has a 2x 1 Gigabit network port, supporting PoE IN and PoE OUT respectively. GWN7302 is an ideal long-range wireless bridge for factories, construction sites, parking lots, scenic locations, and more.
- 2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet port
- Single-band 2x2:2 MIMO with TDMA technology
- Up to 5-kilometer coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- IP66 level weatherproof
- PoE out on 2nd Ethernet Port
|
Wi-Fi Data Rates |
IEEE 802.11a/n/ac/ax up to 7.3 Mbps RF carrier speeds |
|
Antenna |
13.5dBi, 2 single internal antennas: 5GHz |
|
Beamwidth |
5G: H:30°C, V:30°C |
|
MIMO |
5GHz: 2x2:2, MIMO |
|
Frequency Bands |
5GHz Radio: 5150 - 5850 MHz |
|
Channel Bandwidth |
5GHz: 20, 40, 80 and 160MHz (x2) |
|
Maximum TX Power |
5GHz: 26dBm (400mW) |
|
Maximum RX Sensitivity |
-92dBm |
|
Coverage Range |
Up to 5 kilometres *coverage range can vary based on environment |
|
Point to Multipoint |
1 to 4 |
|
Network Ports |
1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input; 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output |
|
LEDs |
1 tri-colour LED for device tracking and status indication, 3x LED for signal strength, 2x LED for network port status |
|
Auxiliary Ports |
1x Reset and Pairing Button |
|
PoE Input |
802.3af/at (Not Included) |
|
DC |
+24V (Compatible with 16V-48V) |
|
PSE output |
Max 13W with PoE+ input, Max 25W with +24V DC/2A input |
|
Maximum Power Consumption |
13W |
|
WLAN |
IEEE 802.11 a/n/ac/ax, SSID: Single 5G, disabled, Support auto channel, Support transmit power selection, Support management Wi-Fi, Support TDMA |
|
Pairing |
One-key pairing, Web pairing |
|
Network |
Static or DHCP IPv4, Support VLAN |
|
Security |
WPA2-PSK, WPA3-PSK |
|
System Tools |
Link Test, Antenna Alignment, Spectrum Analyzer |
|
QOS |
802.11e/WMM,802.1p, 802.1q, TOS |
|
Management Platform |
Local Web, GDMS Networking via SSH tunnelling, GWN Manager, GWN App |
|
Management Protocol |
TR-069, SNMP |
|
Dimension |
Unit: 180 x 102 x 38 mm |
|
Weight |
Unit: 412g |
|
Mounting |
Wall mount or pole mount, kits included |
|
Temperature |
Operation: -30°C to 60°C, Storage: -30°C to 70°C |
|
Humidity |
5% to 95% Non-condensing |
|
Weatherproof Guide |
IP66-level weatherproof capability |
|
