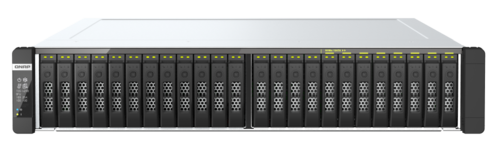

QNAP TDS-H2489FU-R2-4314-128G 24-Bay Dual-CPU U.2 NVMe all-flash rackmount NAS, expandable for 100GbE and PB-scale storage

24-Bay Dual-CPU U.2 NVMe all-flash rackmount NAS, expandable for 100GbE and PB-scale storage

24-Bay all-flash U.2 NVMe PCIe Gen4 dual-processor NAS, 2 x Intel Xeon Silver CPU, 128GB ECC RAM

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The flagship TDS-h2489FU R2 U.2 NVMe all-flash rackmount NAS, powered by dual Intel® Xeon® Silver 4300 series processors in 16/32-core configurations, delivers a highly efficient, secure, and reliable enterprise storage solution. Its robust performance meets the demands of virtualization, data centers, AI Big Data storage, cloud-based applications, and 3D rendering workstations, addressing the need for low-latency and high-load multitasking applications.

The 24-bay TDS-h2489FU R2 comes with sixteen 2.5-inch U.2 PCIe NVMe slots and eight 2.5-inch U.2 PCIe NVMe / SATA 6Gbps slots, along with four PCIe Gen 4 expansion slots for quickly upgrading to 25GbE / 100GbE networking and PB-level storage, supporting high-speed data access and data growth. Dual redundant power supplies minimize the risk of unexpected hardware failure, ensuring stable system operation.

Scalable ECC RDIMM memory up to 1TB
Equipped with error-correcting DDR4 ECC RDIMM memory, expandable up to 1TB, boosting multitasking performance.

25GbE as standard and upgradable to 100GbE
Enable Port Trunking and connect to a network switch to expand bandwidth for more devices and workstations.

High expandability with PCIe Gen 4
Has four PCIe Gen 4 slots, allowing installing high-speed network cards (10/25/100GbE), M.2 SSD expansion cards, Fibre Channel cards, and storage expansion cards.

Petabyte-scale storage
Flexibly connect QNAP PCIe JBOD or SAS JBOD for higher capacity, exceptional performance, and flexible expandability.

M.2 SSD caching
Two M.2 PCIe NVMe / SATA slots for cache acceleration or high-speed storage pools, enhancing performance and data access speed.

Immutability
Uses the ZFS-based QuTS hero operating system, which ensures high data integrity with immutable storage, snapshot protection, data deduplication, and SSD optimization.

Unmatched on-demand performance, seamlessly powering critical applications.

Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).

Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.

Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.

Dual-CPU performance with Intel® Xeon® Silver 4300 Series processors

Processor
Two Intel ® Xeon® Silver 4314 16-core and 32-thread processors (up to 3.4GHz).

Memory
Supports up to 1TB (32 x 32 GB) DDR4 ECC RDIMM RAM.

AES-NI Encryption
AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data.

Ultimate hardware design unleashes all-flash NVMe performance.

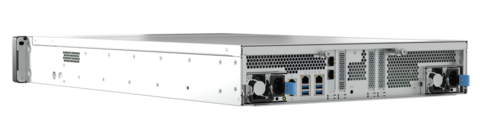

The TDS-h2489FU R2 features an advanced hardware design with exceptional expandability to maximize SSD performance. The swappable controller module simplifies management and hardware maintenance.

25GbE as standard, expandable to blazing-fast 100GbE.
Ultra-high networking maximizes all-flash performance! TDS-h2489FU R2 delivers high bandwidth to meet enterprise demands for large file access, backup/restore, and running multiple virtual machines.

Built-in 2.5GbE
Provides four 2.5GbE ports with Port Trunking support for increasing bandwidth potential and network failover.

Pre-installed 25GbE NIC for enhanced virtualization performance
The dual-port 25GbE network expansion card supports iSER (iSCSI Extensions for RDMA) to accelerate VMware® ESXi data transfers while reducing CPU load. It also supports SR-IOV, optimizing virtual machine network resource allocation, minimizing bandwidth overhead, and ensuring high-performance, and stable virtualization operations.

Upgrade to hyper-speed 100Gbps
The TDS-h2489FU R2 supports 100GbE network cards, which provide the bandwidth to tackle bandwidth-demanding applications.

More PCIe Gen 4 Slots. Endless Possibilities.
The TDS-h2489FU R2 has four PCIe Gen 4 slots, which have twice the bandwidth of PCIe Gen 3, enabling seamless expansion of NAS functionality to support diverse applications.
