Ubiquiti UNVR-INSTANT UniFi Network Video Recorder (NVR) with PoE Switch
Ubiquiti UniFi Network Video Recorder Instant. Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Network Video Recorder Instant includes an integrated Viewport via its HDMI port. You can configure a multi-view in Protect and assign it to the Viewport for live monitoring of selected cameras.
HDD Not Included
The UNVR Instant supports a single drive (HDD or SSD) in either 2.5” or 3.5” format, with the following requirements: Minimum capacity: 1 TB, Must be CMR (Conventional Magnetic Recording), 7200 RPM suggested for greater performance
|
Dimensions |
220 x 220 x 47 mm |
|
UniFi Application Suite |
Protect, Access |
|
Managed Cameras Capacity |
(15) HD, (8) 2K, (6) 4K |
|
Managed Access Hubs |
50 |
|
Storage Capacity |
(1) 3.5" drive bay |
|
Data Protection |
Yes |
|
Vantage Point |
Yes |
|
Interface |

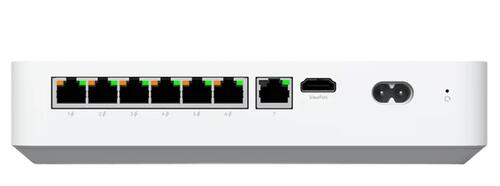

(1) GbE RJ45 uplink port, (6) GbE PoE RJ45 downlink ports, (1) HDMI port (Viewport) |
|
Form Factor |
Compact Desktop |
|
Mounting |
Wall, Din rail mount (Included) |
|
Door Access Support |
Yes |
|
Hard Drive Capacity |
(1) 3.5" HDD support (not included) |
|
Max. Power Budget for Drives |
11W |
|
Max. Power Consumption |
9W |
|
Power Method |
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
|
Power Supply |
AC/DC, Internal, 60W |
|
PoE Budget |
40W |
|
Max. PoE Wattage per Port by PSE |
PoE :15.4W |
|
Voltage Range PoE Mode |
44–57V |
|
Processor |
Quad-core ARM® Cortex®-A55 at 1.7 GHz |
|
Memory |
4 GB |
|
Management |
Ethernet, Bluetooth |
|
Display |
1.14" screen |
|
Weight |
1.04 kg (2.3 lb) |
|
Enclosure Material |
Polycarbonate |
|
Mount Material |
Polycarbonate |
|
LEDs |
Ethernet, PoE |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
UNVR-Instant-AU
