  • 7-Port 10GigE/2.5GbE L2+ Managed Switch, 5x 2.5 Gigabit Ethernet, 2x 10GbE SFP+

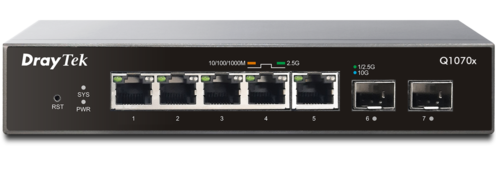

DrayTek DSQ1070X 7-Port 10GigE/2.5GbE L2+ Managed Switch, 5x 2.5 Gigabit Ethernet, 2x 10GbE SFP+

7-Port 10GigE/2.5GbE L2+ Managed Switch, 5x 2.5 Gigabit Ethernet, 2x 10GbE SFP+

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
VigorSwitch Q1070x features 2.5GbE ports for LAN and 10G SFP+ ports for uplink/downlink. When used with WiFi 6 VigorAPs (e.g., VigorAP 1062C), the VigorSwitch Q1070x delivers full WiFi 6 performance to LAN clients.

VigorSwitch Q1070x is a high-performance network switch designed to enhance connectivity and efficiency in business and enterprise environments. Supporting features such as VLAN, Storm Control, Quality of Service and Loop Detection, the VigorSwitch Q1070x is an excellence choice for businesses seeking to maintain a stable, secure, and efficient network infrastructure.

5 x 2.5GbE Ports : 10M/100M/1G/2.5G Ethernet, RJ-45
2 x 10GbE SFP+ : 1G/2.5G/10G SFP Slot
12W Low power consumption

2.5GbE
Provides higher performance to WiFi 6 AP and other Ethernet devices.

10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

IPv6 Ready
VigorSwitch Q1070x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

In-the-Box :
VigorSwitch Q1070x
Rack Mount Kit
Power Cord
Quick Start Guide

Interface
LAN Port 5 x 10M/100M/1G/2.5G Ethernet, RJ-45
2 x 1G/2.5G/10G SFP+ slot

Ethernet Standards
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3bz 2.5GBase-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.3ad LACP
802.1AB LLDP
802.3az EEE

VLAN Type
Port-based VLAN
802.1q Tag-based VLAN*
Management VLAN

Number of QoS Queues 4
Queue Scheduling SPQ, WRR
CoS (Class of Service) CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit Yes

Spanning Tree STP and RSTP

Security
Traffic Control Storm Control
Loop Protection

Multicast
IGMP Snooping v1, v2
MLD Snooping v1, v2

Physical
Power Input DC 12V @ 1A
Max. Power Consumption 12 watts
Dimension (mm) 175(W) x 114(D) x 32(H)
Weight ? kg
Operating Temperature 0 to 45°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
